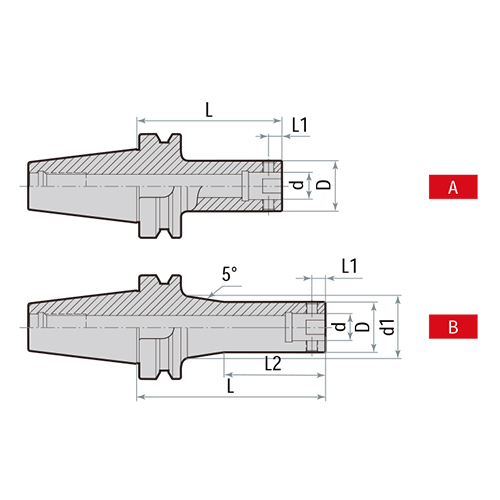

| Specification | Figure | D | d1 | d | L1 | L2 | L | Side-lock screw |
Wrench | Weight | |

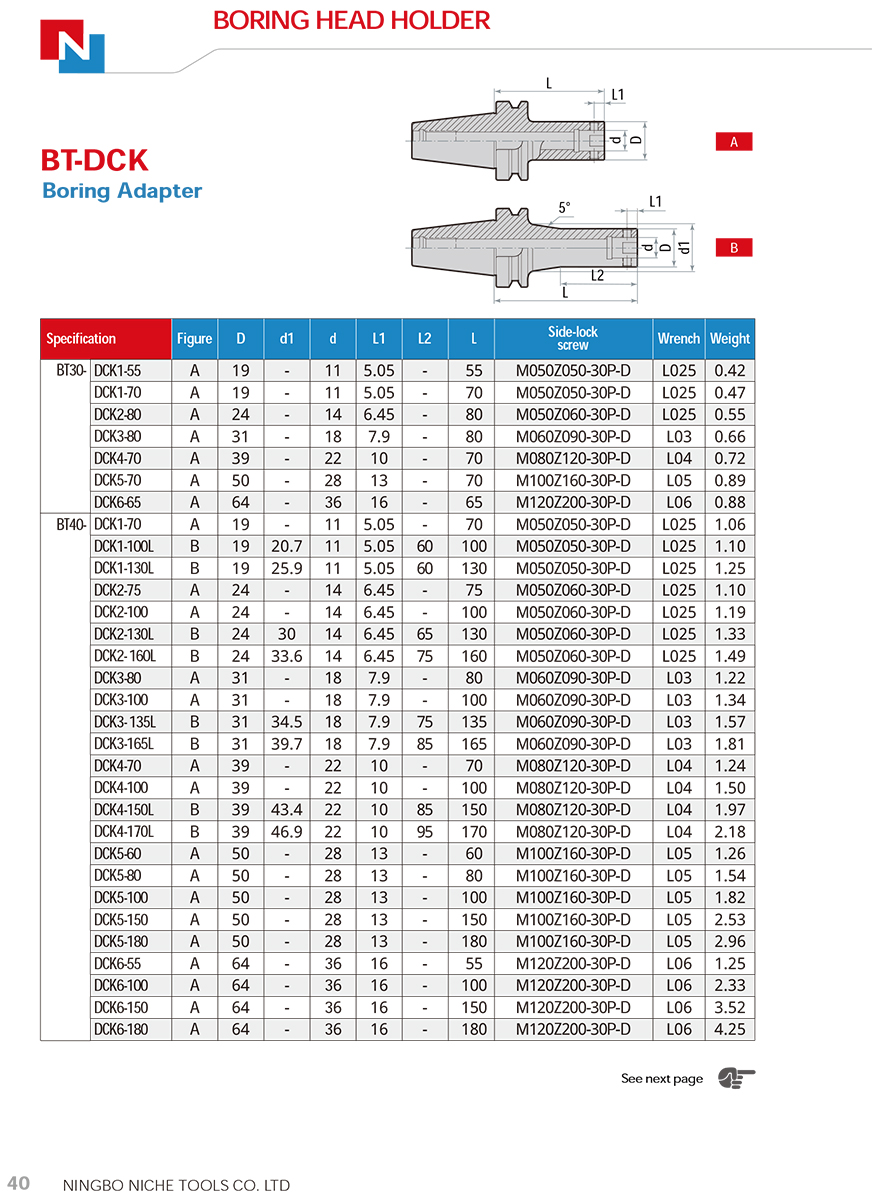

| BT30- |
DCK1-55 | A | 19 | - | 11 | 4.95 | - | 55 | M050Z050-30P-D | L025 | 0.42 |
| DCK1-70 | A | 19 | - | 11 | 4.95 | - | 70 | M050Z050-30P-D | L025 | 0.47 | |
| DCK2-80 | A | 24 | - | 14 | 6.45 | - | 80 | M050Z060-30P-D | L025 | 0.55 | |
| DCK3-80 | A | 31 | - | 18 | 7.9 | - | 80 | M060Z090-30P-D | L03 | 0.66 | |
| DCK4-70 | A | 39 | - | 22 | 10 | - | 70 | M080Z120-30P-D | L04 | 0.72 | |
| DCK5-70 | A | 50 | - | 28 | 13 | - | 70 | M100Z160-30P-D | L05 | 0.89 | |
| DCK6-65 | A | 64 | - | 36 | 16 | - | 65 | M120Z200-30P-D | L06 | 0.88 | |
| BT40- | DCK1-70 | A | 19 | - | 11 | 4.95 | - | 70 | M050Z050-30P-D | L025 | 1.06 |
| DCK1-100L | B | 19 | 20.7 | 11 | 4.95 | 60 | 100 | M050Z050-30P-D | L025 | 1.10 | |
| DCK1-130L | B | 19 | 25.9 | 11 | 4.95 | 60 | 130 | M050Z050-30P-D | L025 | 1.25 | |
| DCK2-75 | A | 24 | - | 14 | 6.45 | - | 75 | M050Z060-30P-D | L025 | 1.10 | |
| DCK2-100 | A | 24 | - | 14 | 6.45 | - | 100 | M050Z060-30P-D | L025 | 1.19 | |
| DCK3-165L | B | 31 | 39.7 | 18 | 7.9 | 85 | 165 | M060Z090-30P-D | L03 | 1.81 | |
| DCK4-70 |
A | 39 | - | 22 | 10 | - | 70 | M080Z120-30P-D |
L04 | 1.24 | |
| DCK4-100 |
A | 39 | - | 22 | 10 | - | 100 | M080Z120-30P-D |
L04 | 1.50 | |
| DCK4-150L |
B | 39 | 43.4 | 22 | 10 | 85 | 150 | M080Z120-30P-D |
L04 | 1.97 | |
| DCK4-170L |
B | 39 | 46.9 | 22 | 10 | 95 | 170 | M080Z120-30P-D |
L04 | 2.18 | |
| DCK5-60 |
A | 50 | - | 28 | 13 | - | 60 | M100Z160-30P-D |
L05 | 1.26 | |
| DCK5-80 |
A | 50 | - | 28 | 13 | - | 80 | M100Z160-30P-D |
L05 | 1.54 | |
| DCK5-100 |
A | 50 | - | 28 | 13 | - | 100 | M100Z160-30P-D |
L05 | 1.82 | |
| DCK5-150 |
A | 50 | - | 28 | 13 | - | 150 | M100Z160-30P-D |
L05 | 2.53 | |
| DCK5-180 |
A | 50 | - | 28 | 13 | - | 180 | M100Z160-30P-D |
L05 | 2.96 | |
| DCK6-55 |
A | 64 | - | 36 | 16 | - | 55 | M120Z200-30P-D |
L06 | 1.25 | |
| DCK6-100 |
A | 64 | - | 36 | 16 | - | 100 | M120Z200-30P-D |
L06 | 2.33 | |
| DCK6-150 |
A | 64 | - | 36 | 16 | - | 150 | M120Z200-30P-D |
L06 | 3.52 | |
| DCK6-180 |
A | 64 | - | 36 | 16 | - | 180 | M120Z200-30P-D |
L06 | 4.25 | |

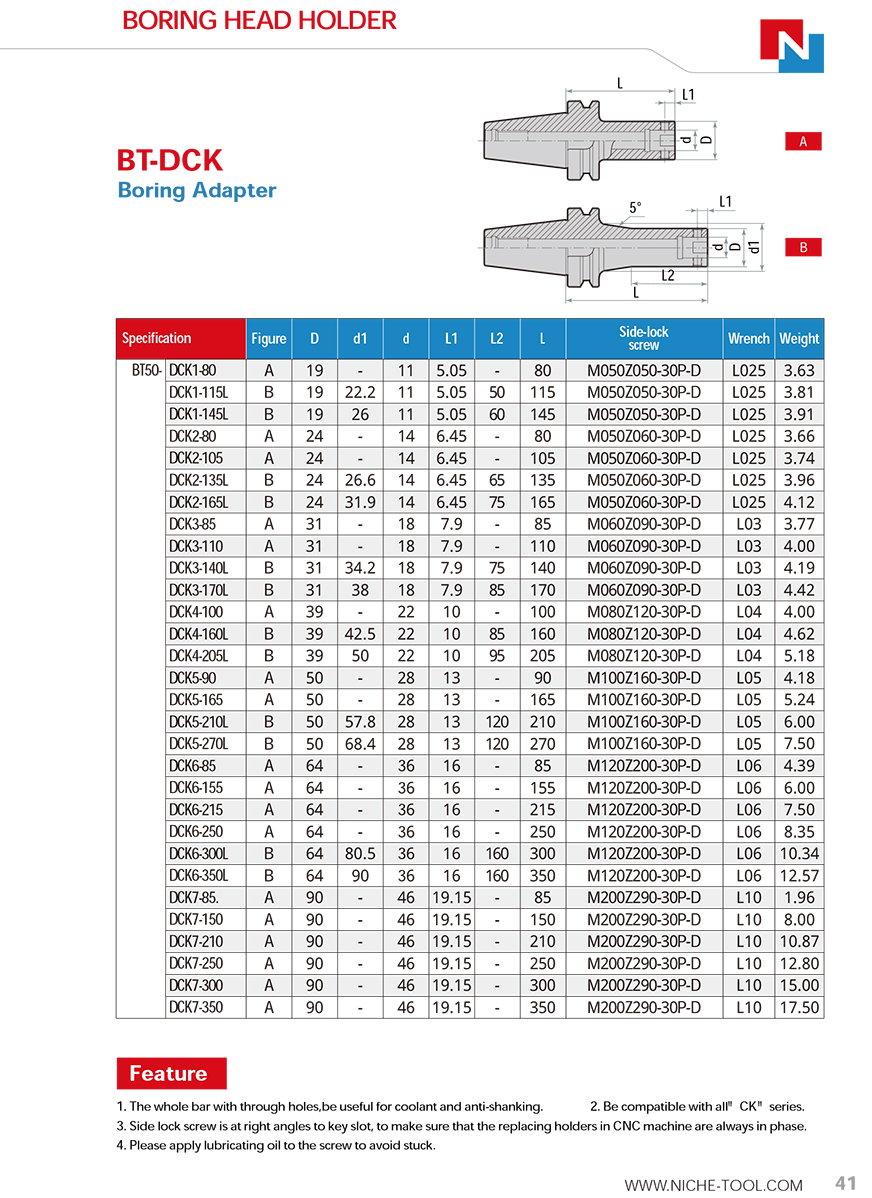

| BT50- |
DCK1-80 | A | 19 | - | 11 | 4.95 | - | 80 | M050Z050-30P-D | L025 | 3.63 |
| DCK1-115L | B | 19 | 22.2 | 11 | 4.95 | 50 | 115 | M050Z050-30P-D | L025 | 3.81 | |
| DCK1-145L |
B | 19 | 26 | 11 | 4.95 | 60 | 145 | M050Z050-30P-D |
L025 |
3.91 | |
| DCK2-80 |
A | 24 | - | 14 | 6.45 | - | 80 | M050Z060-30P-D | L025 | 3.66 | |
| DCK2-105 |
A | 24 | - | 14 | 6.45 | - | 105 | M050Z060-30P-D |
L025 |
3.74 | |
| DCK2-135L |
B | 24 | 26.6 | 14 | 6.45 | 65 | 135 | M050Z060-30P-D |
L025 |
3.96 | |
| DCK2-165L |
B | 24 | 31.9 | 14 | 6.45 | 75 | 165 | M050Z060-30P-D |
L025 |
4.12 | |
| DCK3-85 |
A | 31 | - | 18 | 7.9 | - | 85 | M060Z090-30P-D |
L03 | 3.77 | |
| DCK6-85 | A | 64 | - | 36 | 16 | - | 85 | M120Z200-30P-D | L06 | 4.39 | |
| DCK6-155 | A | 64 | - | 36 | 16 | - | 155 | M120Z200-30P-D | L06 | 6.00 | |
| DCK6-215 | A | 64 | - | 36 | 16 | - | 215 | M120Z200-30P-D | L06 | 7.50 | |
| DCK6-250 | A | 64 | - | 36 | 16 | - | 250 | M120Z200-30P-D | L06 | 8.35 | |
| DCK6-300L | B | 64 | 80.5 | 36 | 16 | 160 | 300 | M120Z200-30P-D | L06 | 10.34 | |
| DCK6-350L | B | 64 | 90 | 36 | 16 | 160 | 350 | M120Z200-30P-D | L06 |
|
|
