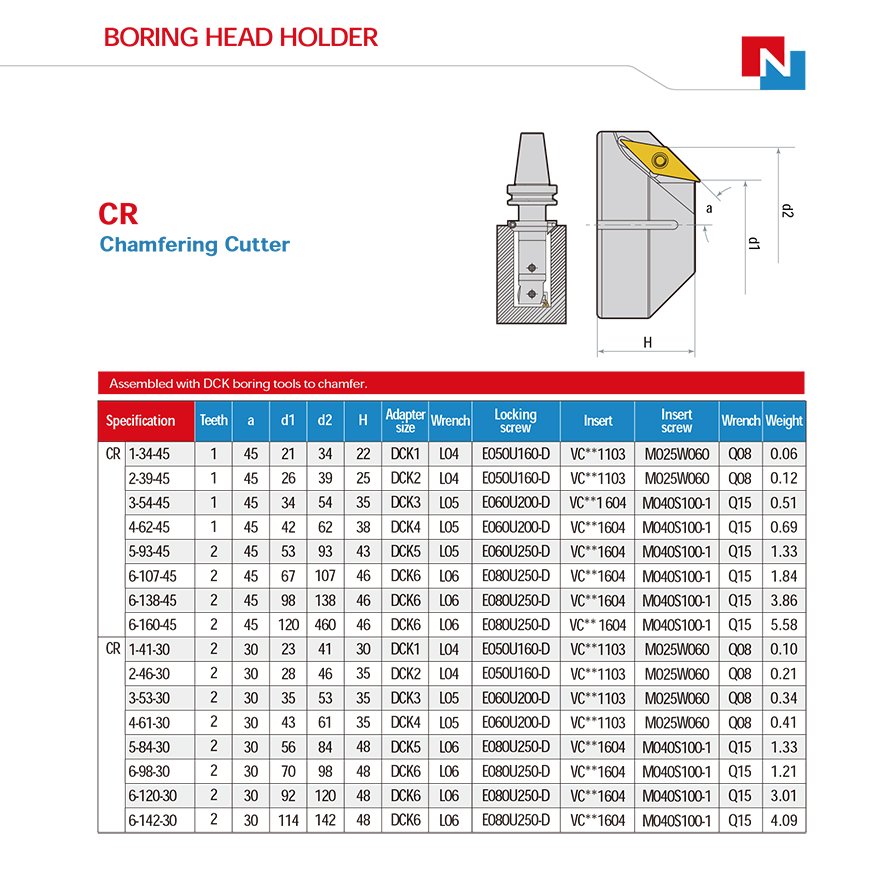

Specification
|

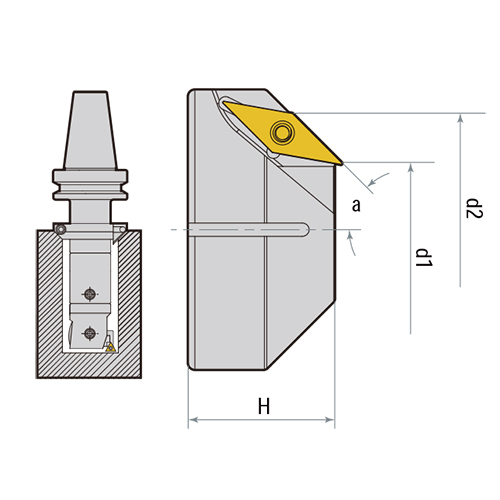

Teeth | a | d1 | d2 | H | Adapter size | Wrench | Locking screw |
Insert | Insert screw |
Wrench | Weight | |
| CR | 1-34-45 | 1 | 45 | 21 | 34 | 22 | DCK1 | L04 | E050U160-D | VC**1103 | M025W060 | Q08 | 0.06 |
| 2-39-45 | 1 | 45 | 26 | 39 | 25 | DCK2 | L04 | E050U160-D | VC**1103 | M025W060 | Q08 | 0.12 | |
| 3-54-45 | 1 | 45 | 34 | 54 | 35 | DCK3 | L05 | E060U200-D | VC**1604 | M040S100-1 | Q15 | 0.51 | |
| 4-62-45 | 1 | 45 | 42 | 62 | 38 | DCK4 | L05 | E060U200-D | VC**1604 | M040S100-1 | Q15 | 0.69 | |
| 5-93-45 | 2 | 45 | 53 | 93 | 43 | DCK5 | L05 | E060U250-D | VC**1604 | M040S100-1 | Q15 | 1.33 | |
| 6-107-45 | 2 | 45 | 67 | 107 | 46 | DCK6 | L06 | E080U250-D | VC**1604 | M040S100-1 | Q15 | 1.84 | |
| 6-138-45 | 2 | 45 | 98 | 138 | 46 | DCK6 | L06 | E080U250-D | VC**1604 | M040S100-1 | Q15 | 3.86 | |
| 6-160-45 | 2 | 45 | 120 | 460 | 46 | DCK6 | L06 | E080U250-D | VC**1604 | M040S100-1 | Q15 | 5.58 | |
| CR | 1-41-31 | 2 | 30 | 23 | 41 | 30 | DCK1 | L04 | E050U160-D | VC**1103 | M025W060 | Q08 | 0.10 |
| 2-46-30 | 2 | 30 | 28 | 46 | 35 | DCK2 | L04 | E050U160-D | VC**1103 | M025W060 | Q08 | 0.21 | |
| 3-53-30 | 2 | 30 | 35 | 53 | 35 | DCK3 | L05 | E060U200-D | VC**1103 | M025W060 | Q08 | 0.34 | |
| 4-61-30 | 2 | 30 | 43 | 61 | 35 | DCK4 | L05 | E060U200-D | VC**1103 | M025W060 | Q08 | 0.41 | |
| 5-84-30 | 2 | 30 | 56 | 84 | 48 | DCK5 | L06 | E080U250-D | VC**1604 | M040S100-1 | Q15 | 1.33 | |
| 6-98-30 | 2 | 30 | 70 | 98 | 48 | DCK6 | L06 | E080U250-D | VC**1604 | M040S100-1 | Q15 | 1.21 | |
| 6-120-30 | 2 | 30 | 92 | 120 | 48 | DCK6 | L06 | E080U250-D | VC**1604 | M040S100-1 | Q15 | 3.01 | |
| 6-142-30 | 2 | 30 | 114 | 142 | 48 | DCK6 | L06 | E080U250-D | VC**1604 | M040S100-1 | Q15 | 4.09 | |
