Home > Boring and Reaming Tools > Fine Boring Tools

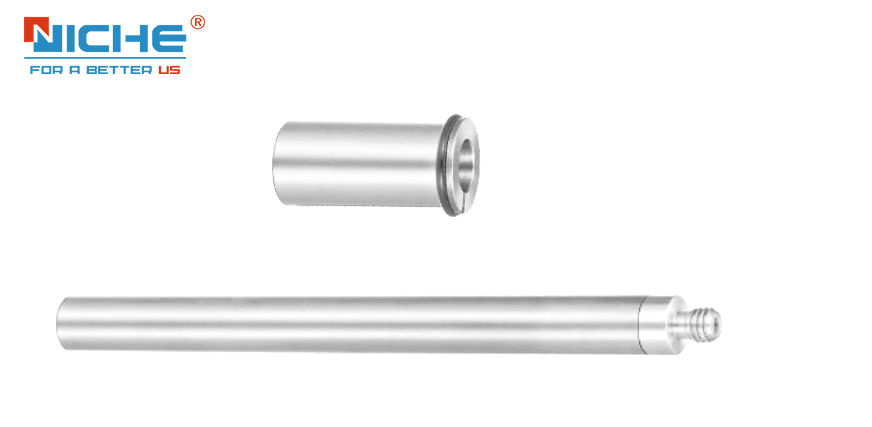

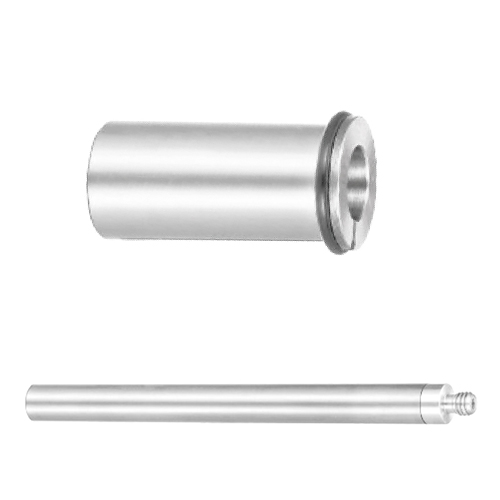

DBJ Collect & DT Solid Carbide Boring Bar
DBJ Collect & DT Solid Carbide Boring Bar DBJ Collect & DT Solid Carbide Boring Bar DBJ Collect & DT Solid Carbide Boring Bar DBJ Collect & DT Solid Carbide Boring Bar DBJ Collect & DT Solid Carbide Boring Bar DBJ Collect & DT Solid Carbide Boring Bar
  • DBJ Collect & DT Solid Carbide Boring Bar
  • DBJ Collect & DT Solid Carbide Boring Bar

DBJ Collect & DT Solid Carbide Boring Bar

Item No.: DBJ Collect & DT Solid Carbide Boring Ba
* CBH boring head loaded opposite direction can process boring machining.
* Higher rigidity and better working performance are provided by close connection between cartridge and boring head.
Add to Inquiry
Description
Description
MICRO BORING TOOLS

DBJ Collect & DT Solid Carbide Boring Bar

Features:
* CBH boring head loaded opposite direction can process boring machining.
* Each boring head has three different size cartridges for different boring range.
* Formachining blind hole with insert angle 3°can avoid the impact to the end surface.
* Cartridge could be mounted in opposite direction for back boring.
* Higher rigidity and better working performance are provided by close connection between cartridge and boring head.
* All DCK-CBH micro boring tools have internal cooling design which improve surface roughness and inserts tool life.

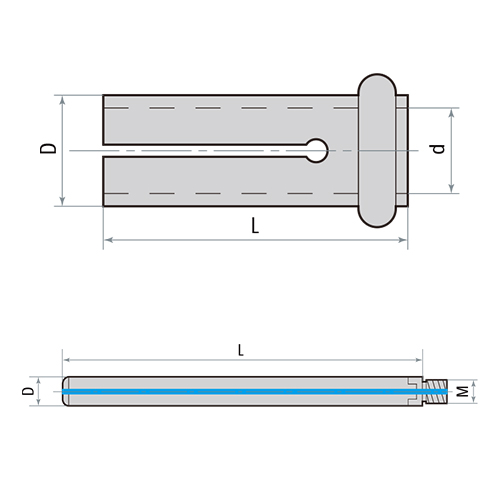

DBJ10 Collect For Solid Carbide Boring Bar
 Specification
 D d L Rubber Washer Wrench
DBJ 10-6 10 6 26 Ф8*Ф1.5 CA06**
10-8 10 8 26 Ф8*Ф1.5 DT08-M5-*
12-8 12 8 32 Ф10*Ф1.5 DT08-M5-*
12-10 12 10 32 Ф10*Ф1.5 DT10-M6-*
16-8 16 8 38 Ф14*Ф1.5 DT08-M5-*
16-10 16 10 38 Ф14*Ф1.5 DT08-M6-*
16-12 16 12 38 Ф14*Ф1.5 DT08-M6-*

DT Solid Carbide Boring Bar
 Specification
 D L M Insert  Holder Collect  Weight
DT 08-M5-110 8 110 M5 DEB09,DEB10.5 DBJ16-8 0.074
10-M6-110
 10 110 M6 DEB12 DBJ16-10 0.118
10-M6-135
 10 135 M6 DEB12 DBJ16-10 0.149
10-M6-150 10 150 M6 DEB12 DBJ16-10 0.172
12-M6-120 12 120 M6 DEB14,DEB16 DBJ16-12 0.178
12-M6-140 12 140 M6 DEB14,DEB16 DBJ16-12 0.205
12-M6-160 12 160 M6 DEB14,DEB16 DBJ16-12 0.245
16-M10-125 16 125 M10 DEB18,DEB20,DEB22,DEB24,DEB26,DEB28
DEB30,DEB32,DEB34,DEB36,DEB38,DEB40
DEB42,DEB44,DEB46,DEB48,DEB50		 - 0.310
16-M10-160 16 160 M10 - 0.129
16-M10-200 16 200 M10 - 0.506
