Home > Boring and Reaming Tools > Fine Boring Tools

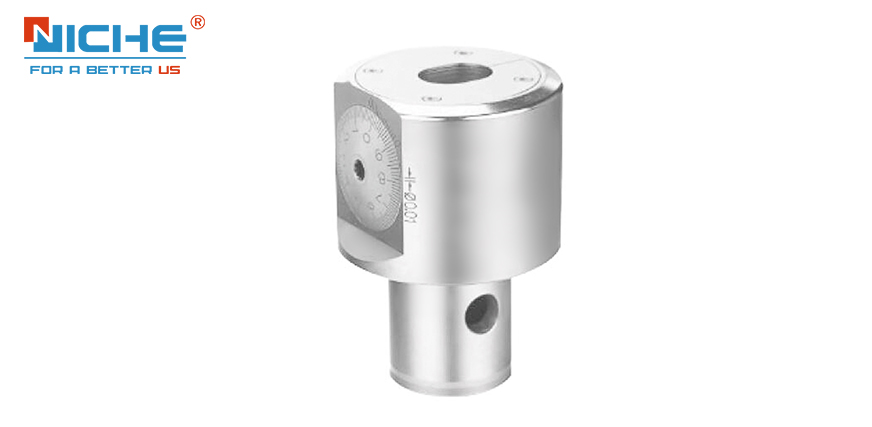

DBJ10/12/16 Micro Boring Head
DBJ10/12/16 Micro Boring Head DBJ10/12/16 Micro Boring Head DBJ10/12/16 Micro Boring Head DBJ10/12/16 Micro Boring Head DBJ10/12/16 Micro Boring Head DBJ10/12/16 Micro Boring Head DBJ10/12/16 Micro Boring Head DBJ10/12/16 Micro Boring Head DBJ10/12/16 Micro Boring Head
  • DBJ10/12/16 Micro Boring Head
  • DBJ10/12/16 Micro Boring Head
  • DBJ10/12/16 Micro Boring Head

DBJ10/12/16 Micro Boring Head

Item No.: DBJ10/12/16 Micro Boring Head
* CBH boring head loaded opposite direction can process boring machining.
* Higher rigidity and better working performance are provided by close connection between cartridge and boring head.
Add to Inquiry
Description
Description
MICRO BORING TOOLS

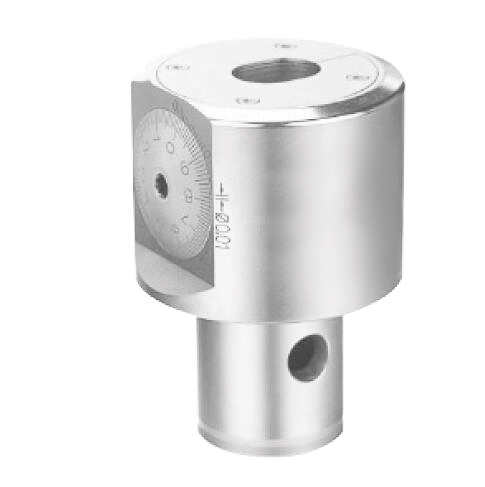

DBJ10/12/16 Micro Boring Head

Features:
* CBH boring head loaded opposite direction can process boring machining.
* Each boring head has three different size cartridges for different boring range.
* Formachining blind hole with insert angle 3°can avoid the impact to the end surface.
* Cartridge could be mounted in opposite direction for back boring.
* Higher rigidity and better working performance are provided by close connection between cartridge and boring head.
* All DCK-CBH micro boring tools have internal cooling design which improve surface roughness and inserts tool life.

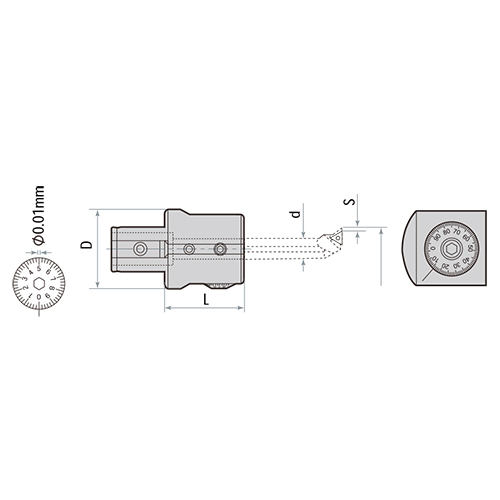

DBJ10/12/16 Micro Boring Head

 Specification D d L S.Micro
distance		 Dial
precision		 Boring
range		 Adapter
size		 Adjusting
screw		 Locking
screw		 Wrench  Weight
DBJ10 39 10 30 2.5 0.01 6-24 DCK4 M060U060-D M060U050 T03 0.50
DBJ12 50 12 40 4 0.01 6-32 DCK5 M060U090-D M080U060 T04 0.75
DBJ16 64 16 50 5 0.01 8-50 DCK6 M060U110-D M100U070 T05 1.14


DBJ10/12/16 Micro Boring HeadDBJ10/12/16 Micro Boring HeadDBJ10/12/16 Micro Boring HeadDBJ10/12/16 Micro Boring Head
