Home > Boring and Reaming Tools > Fine Boring Tools

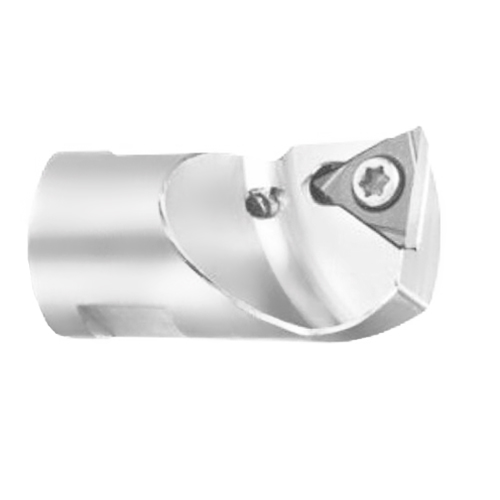

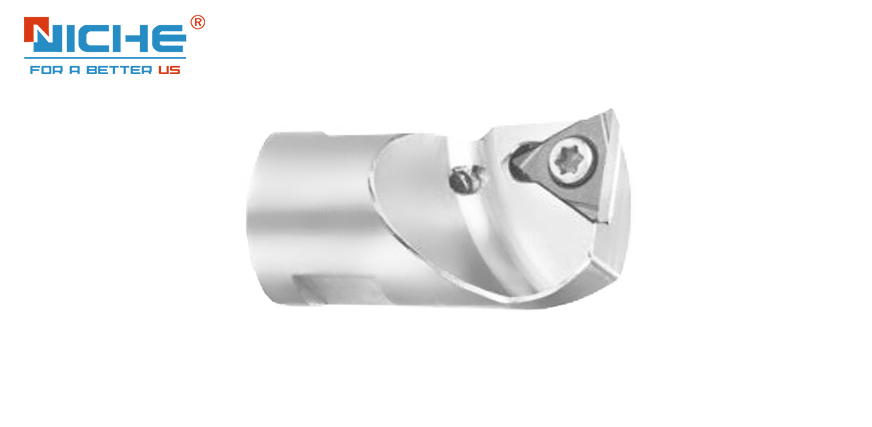

DEB Insert Bar For Micro Boring Tools
DEB Insert Bar For Micro Boring Tools DEB Insert Bar For Micro Boring Tools DEB Insert Bar For Micro Boring Tools DEB Insert Bar For Micro Boring Tools DEB Insert Bar For Micro Boring Tools DEB Insert Bar For Micro Boring Tools
  • DEB Insert Bar For Micro Boring Tools
  • DEB Insert Bar For Micro Boring Tools

DEB Insert Bar For Micro Boring Tools

Item No.: DEB Insert Bar
* CBH boring head loaded opposite direction can process boring machining.
* Higher rigidity and better working performance are provided by close connection between cartridge and boring head.
Add to Inquiry
Description
Description
MICRO BORING TOOLS

DEB Insert Bar

Features:
* CBH boring head loaded opposite direction can process boring machining.
* Each boring head has three different size cartridges for different boring range.
* Formachining blind hole with insert angle 3°can avoid the impact to the end surface.
* Cartridge could be mounted in opposite direction for back boring.
* Higher rigidity and better working performance are provided by close connection between cartridge and boring head.
* All DCK-CBH micro boring tools have internal cooling design which improve surface roughness and inserts tool life.


DEB Insert Bar

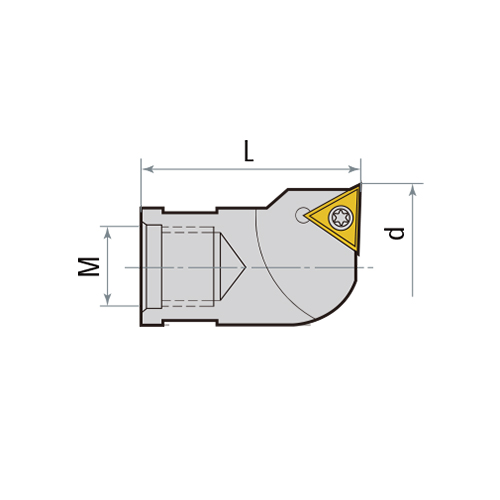

 Specification
 d L M Boring
range		 Insert Insert
screw		 Wrench Weight
DEB 09 9 18 M5 9-10.5 TPGH0802 M022W050 Q07 0.03
10.5 10.5 18 M5 10.5-12 TPGH0802 M022W050
 Q07
 0.03
12 12 23 M6 12-14 TPGH0802 M022W050
 Q07
 0.03
14 14 23 M6 14-16 TPGH0802 M022W050
 Q07
 0.03
16 16 23 M10 16-18 TPGH0802 M022W050
 Q07
 0.04
18 18 27 M10 18-20 TPGH0802 M022W050
 Q07
 0.04
20 20 27 M10 20-22 TPGH0802 M022W050
 Q07
 0.04
22 22 27 M10 22-24 TPGH0802 M022W050
 Q07
 0.05
24 24 27 M10 24-26 TPGH0802 M022W050
 Q07
 0.05
26 26 27 M10 26-28 TPGH0802 M022W050
 Q07
 0.05
28 28 27 M10 28-30 TPGH0802 M022W050
 Q07
 0.06
30 30 27 M10 30-32 TPGH0802 M022W050
 Q07
 0.06
32 32 27 M10 32-34 TPGH0802 M022W050
 Q07
 0.07
34 34 27 M10 34-36 TPGH0802 M022W050
 Q07
 0.09
36 36 27 M10 36-38 TPGH0802 M022W050
 Q07
 0.11
38 38 27 M10 38-40 TPGH0802 M022W050
 Q07
 0.15
40 40 27 M10 40-42 TPGH0802 M022W050
 Q07
 0.16
42 42 27 M10 42-44 TPGH0802 M022W050
 Q07
 0.19
44 44 27 M10 44-46 TPGH0802 M022W050
 Q07
 0.22
46 46 27 M10 46-48 TPGH0802 M022W050
 Q07
 0.26
48 48 27 M10 48-50 TPGH0802 M022W050
 Q07
 0.30
50 50 27 M10 50-52 TPGH0802 M022W050
 Q07
 0.34
