HIGH-FEED MILLING TOOLS

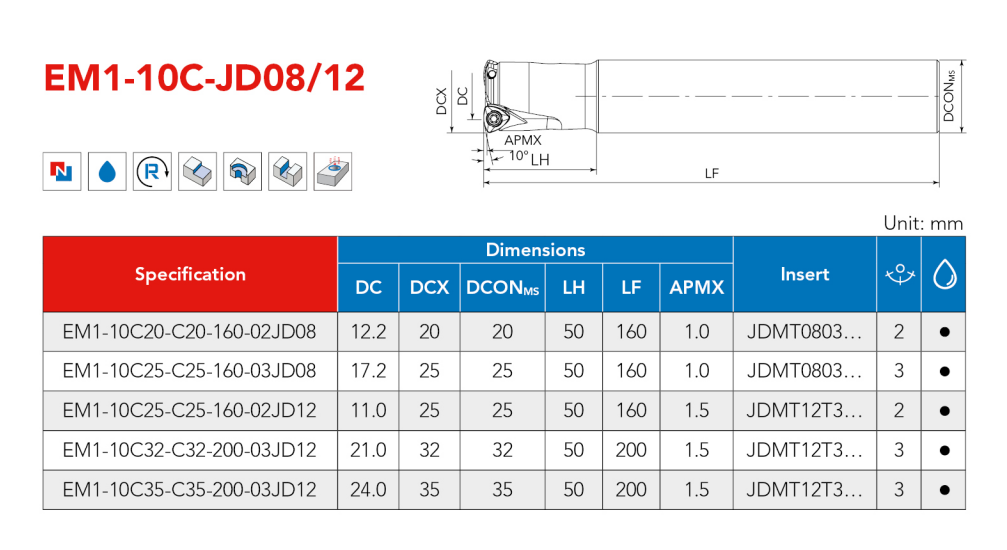

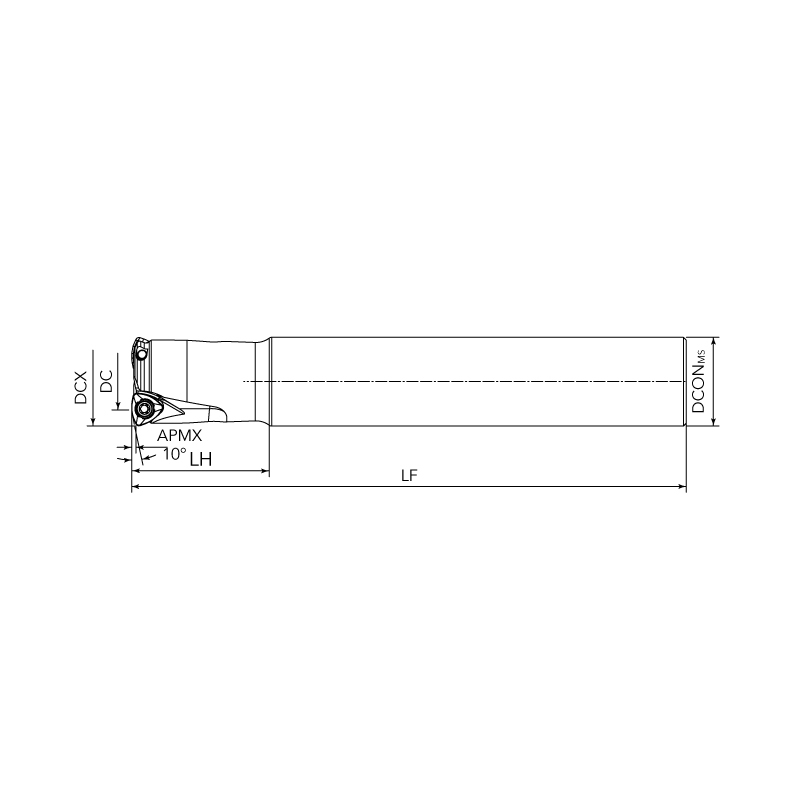

EM1-10C-JD08/12 (END MILL)
Features:
* Diameter Range: Ø20-Ø35mm
* High-feed application
* Through coolant
| PRODUCT CODE |
Dimensions (mm) |
INSERTS |
FLUTE NO. |
| DC |
DCX |
DCONMS |
LH |
LF |
APMX |
| EM1-10C20-C20-160-02JD08 |
12.2 |
20 |
20 |
50 |
160 |
1.0 |
JDMT0803… |
2 |
| EM1-10C25-C25-160-03JD08 |
17.2 |
25 |
25 |
50 |
160 |
1.0 |
JDMT0803… |
3 |
| EM1-10C25-C25-160-02JD12 |
11.0 |
25 |
25 |
50 |
160 |
1.5 |
JDMT12T3… |
2 |
| EM1-10C32-C32-200-03JD12 |
21.0 |
32 |
32 |
50 |
200 |
1.5 |
JDMT12T3… |
3 |
| EM1-10C35-C35-200-03JD12 |
24.0 |
35 |
35 |
50 |
200 |
1.5 |
JDMT12T3… |
3 |

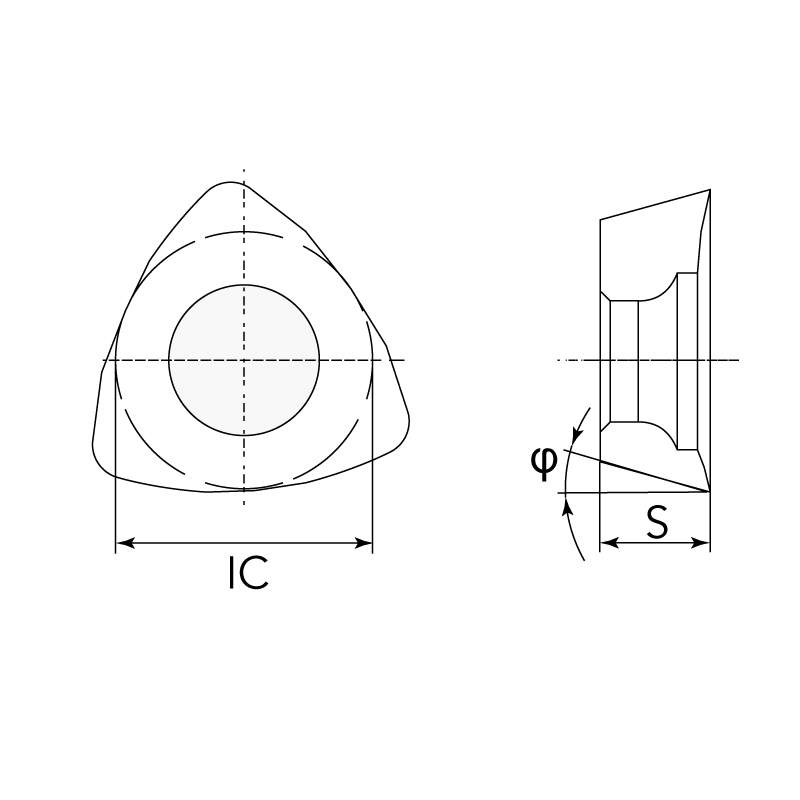

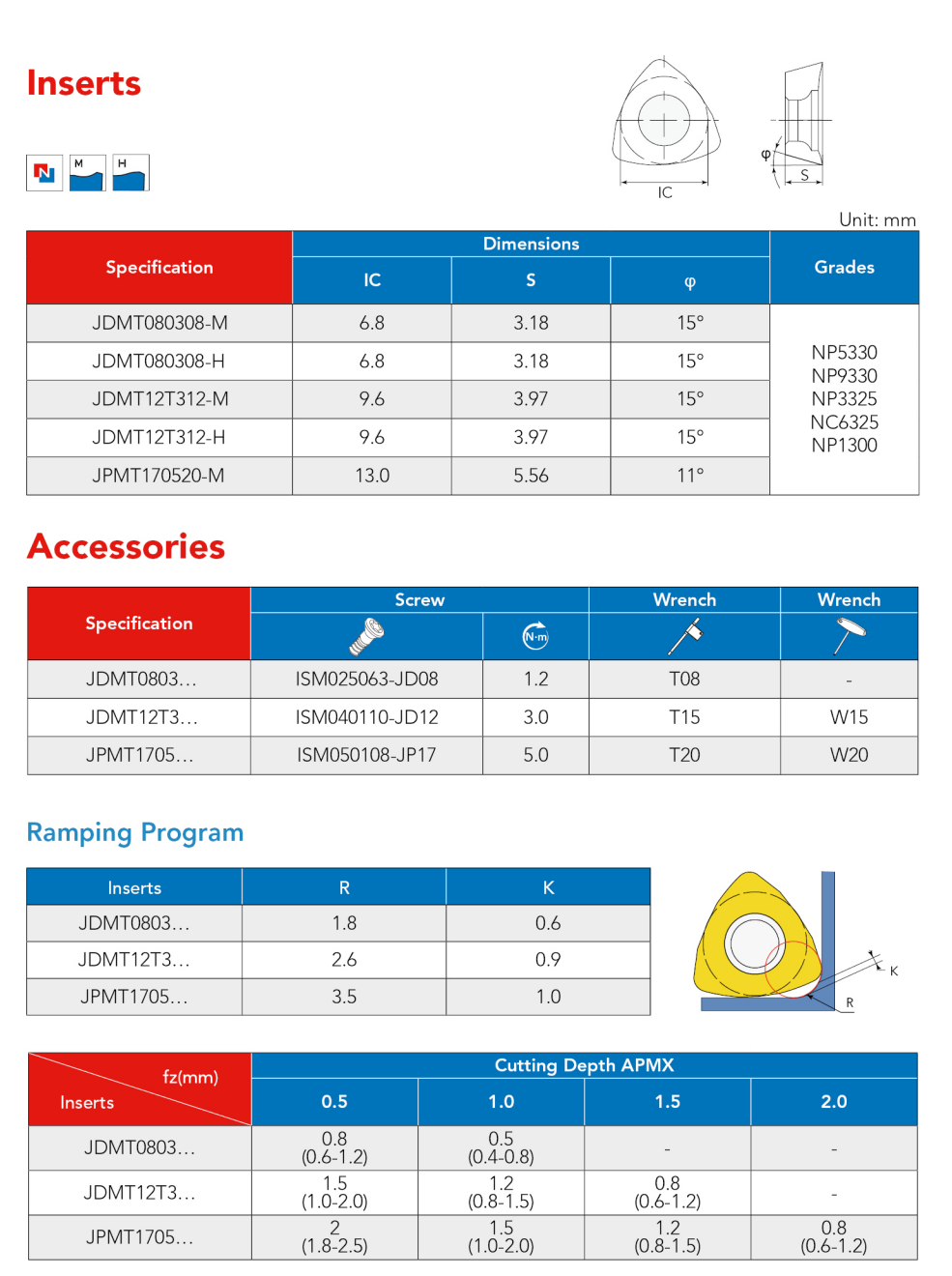

INSERTS
