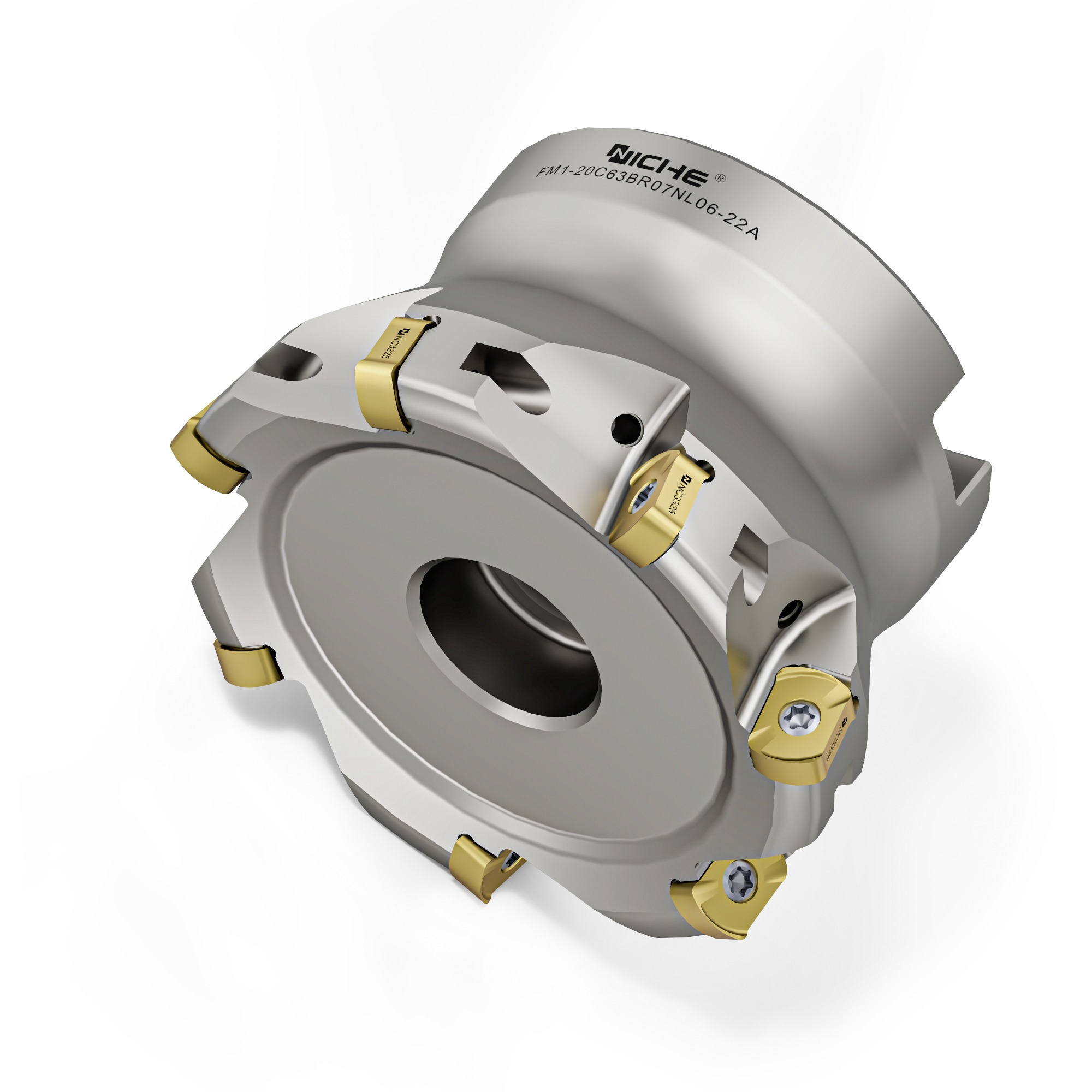

HIGH-FEED MILLING TOOLS FM1-20C-NL06/09 (FACE MILL)Features:
* Diameter Range: Ø40-Ø100mm
* High-feed application
* Through coolant
* Double sided negative insert with positive cutting
* Particularly suitable for high feed machining
* 4 corner inserts for cost effective machining
* Through coolant (air) system
* Minimum Diameter 16mm
* NLMP 06: Minimum diameter 16mm with 1mm of maximum D.O.C.
* NLMP 09: Minimum diameter 22mm with 1.5mm of maximum D.O.C.

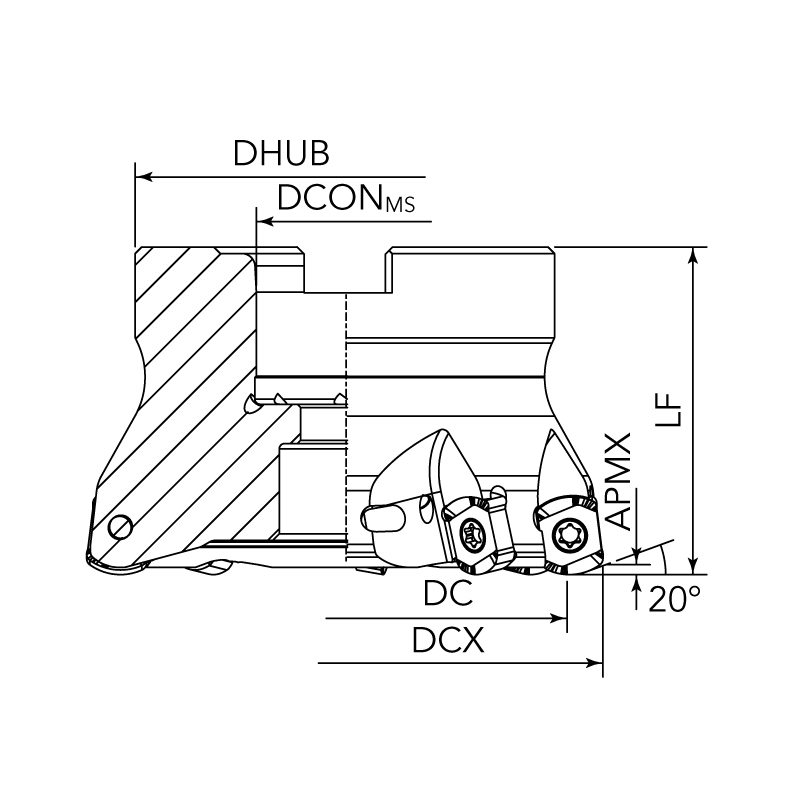

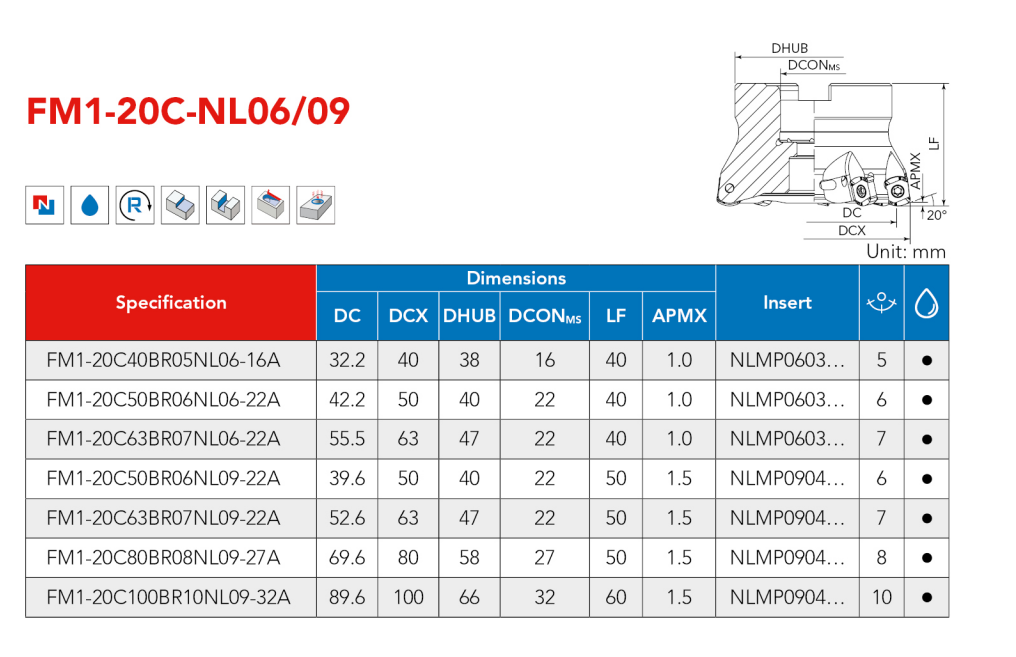

| PRODUCT CODE |
Dimensions (mm) |
INSERTS |
FLUTE NO. |
| DC |
DCX |
DHUB |
DCONMS |
LF |
APMX |
| FM1-20C40BR05NL06-16A |
32.2 |
40 |
38 |
16 |
40 |
1.0 |
NLMP0603… |
5 |
| FM1-20C50BR06NL06-22A |
42.2 |
50 |
40 |
22 |
40 |
1.0 |
NLMP0603… |
6 |
| FM1-20C63BR07NL06-22A |
55.5 |
63 |
47 |
22 |
40 |
1.0 |
NLMP0603… |
7 |
| FM1-20C50BR06NL09-22A |
39.6 |
50 |
40 |
22 |
50 |
1.5 |
NLMP0904… |
6 |
| FM1-20C63BR07NL09-22A |
52.6 |
63 |
47 |
22 |
50 |
1.5 |
NLMP0904… |
7 |
| FM1-20C80BR08NL09-27A |
69.6 |
80 |
58 |
27 |
50 |
1.5 |
NLMP0904… |
8 |
| FM1-20C100BR10NL09-32A |
89.6 |
100 |
66 |
32 |
60 |
1.5 |
NLMP0904… |
10 |

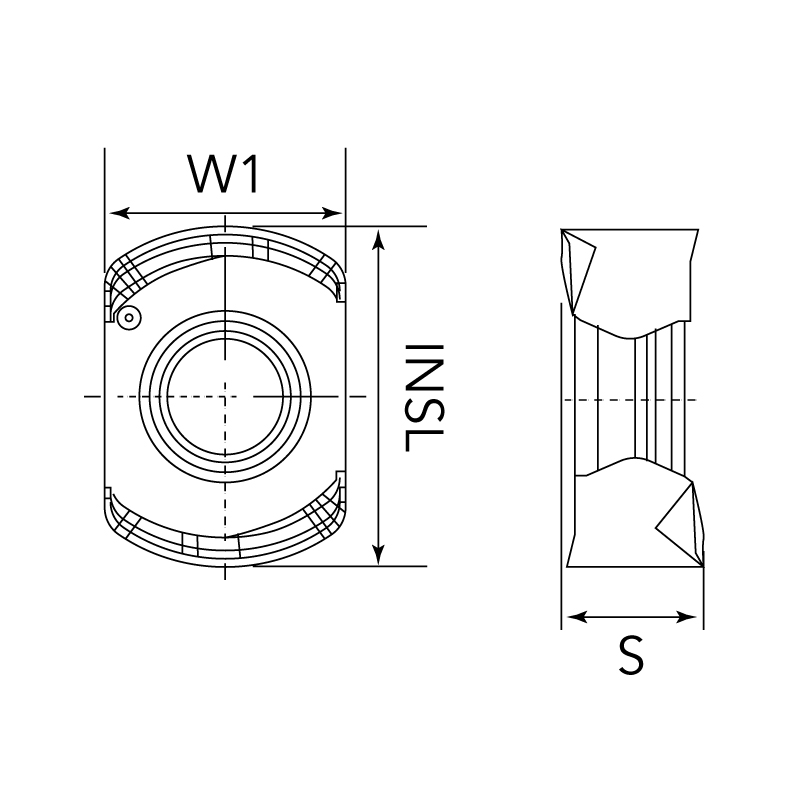

INSERTS
