Home > Milling Tools > High-Feed Milling Tools

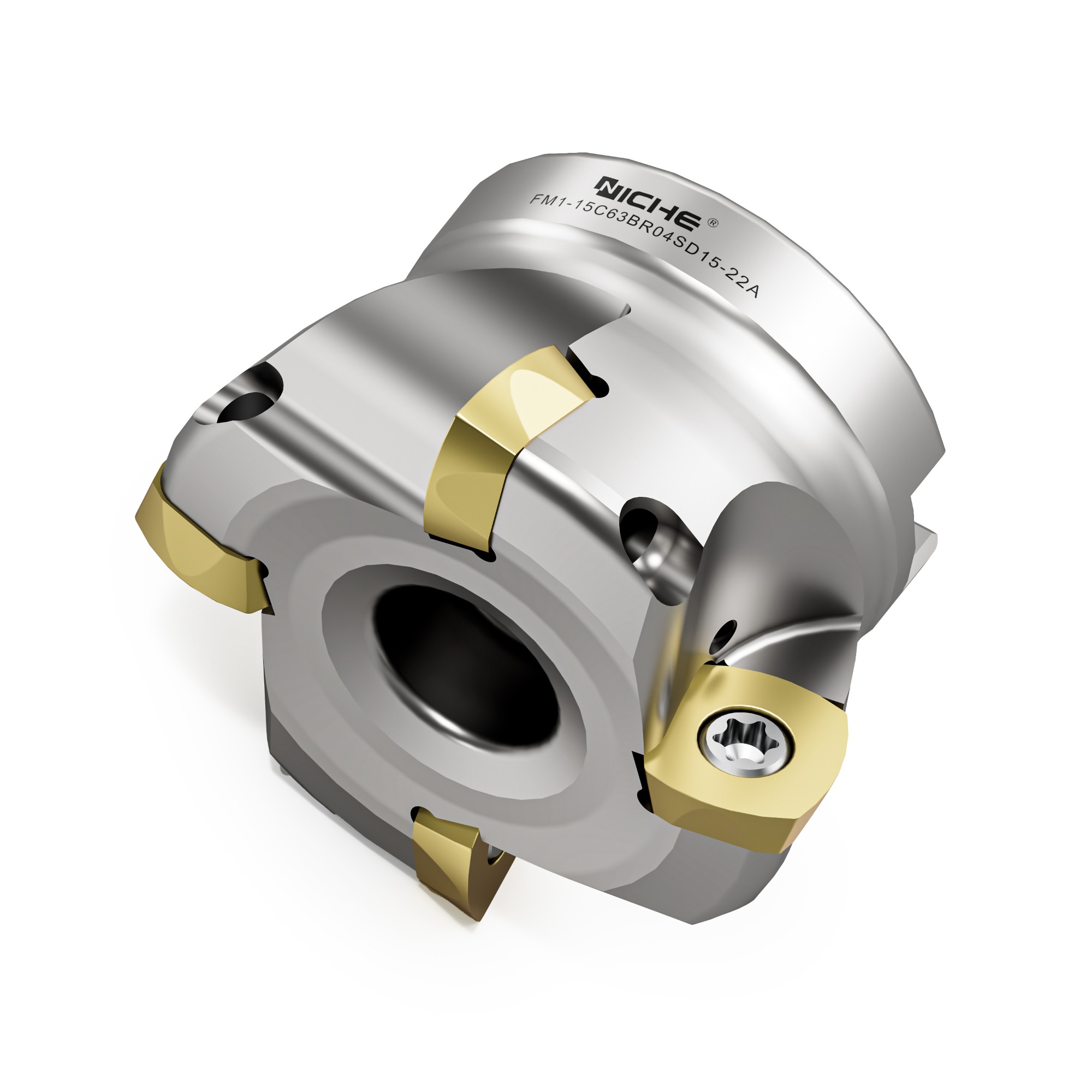

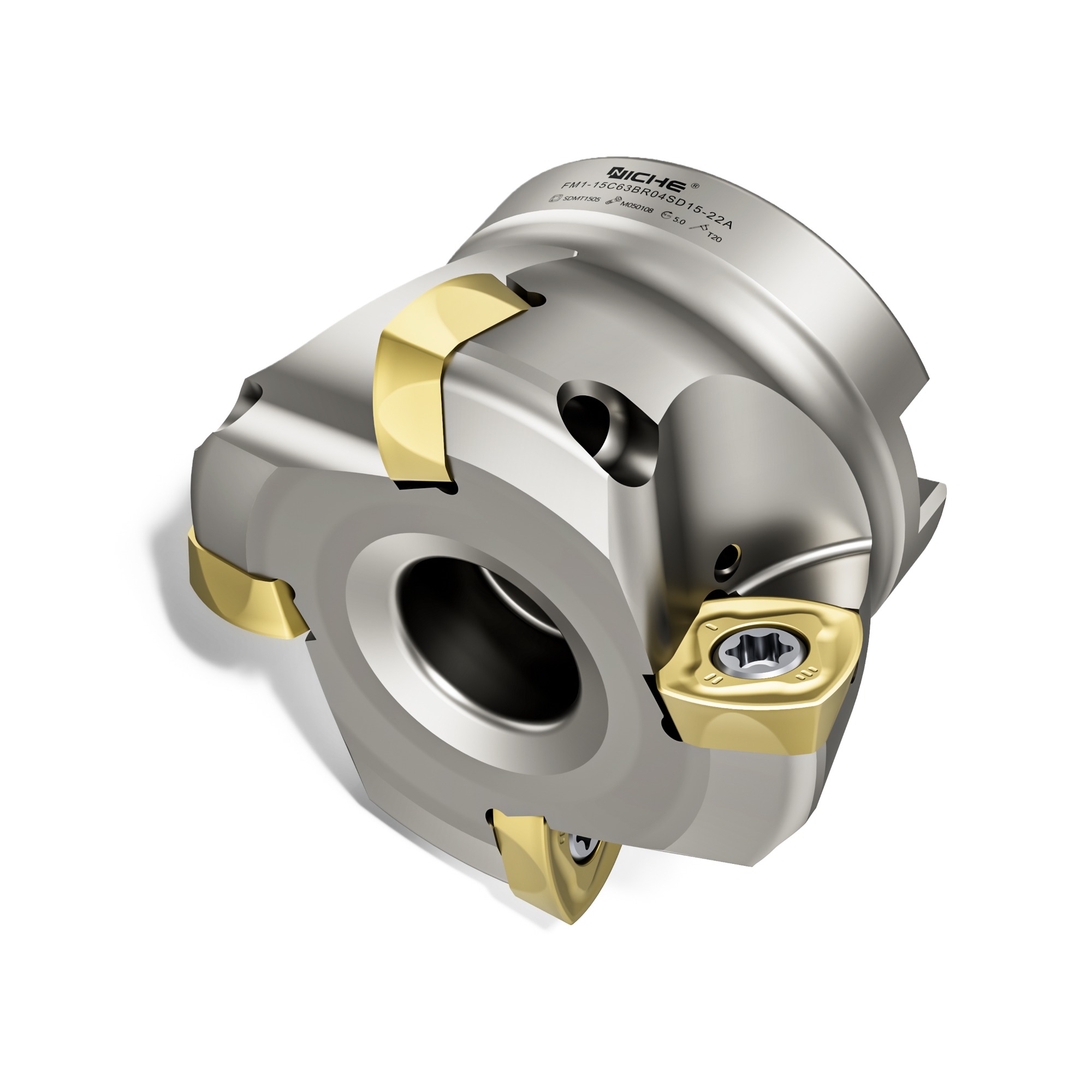

SDMT12/15 High-Feed Milling Tools
SDMT12/15 High-Feed Milling Tools SDMT12/15 High-Feed Milling Tools SDMT12/15 High-Feed Milling Tools SDMT12/15 High-Feed Milling Tools SDMT12/15 High-Feed Milling Tools SDMT12/15 High-Feed Milling Tools SDMT12/15 High-Feed Milling Tools SDMT12/15 High-Feed Milling Tools SDMT12/15 High-Feed Milling Tools
  • SDMT12/15 High-Feed Milling Tools
  • SDMT12/15 High-Feed Milling Tools
  • SDMT12/15 High-Feed Milling Tools

SDMT12/15 High-Feed Milling Tools

Item No.: FM1-90C-SD12/15
* Diameter Range: Ø50mm-Ø100mm
* Suitable for rough machining large mold
* Through coolant
Add to Inquiry
Description
Description
HIGH-FEED MILLING TOOLS

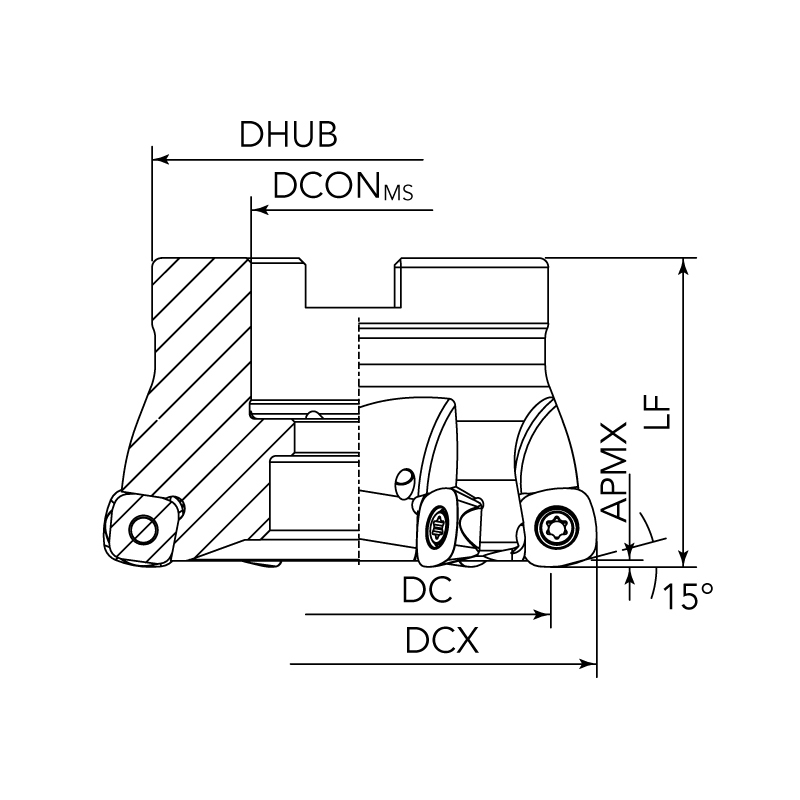

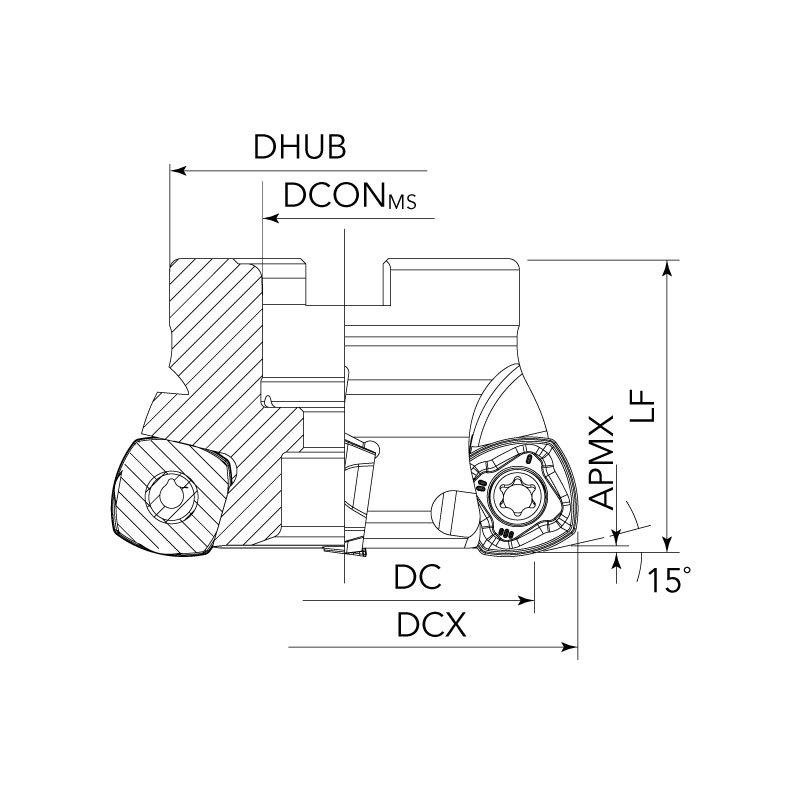

FM1-90C-SD12/15  (FACE MILL)

Features:
* Diameter Range: Ø50mm-Ø100mm
* Suitable for rough machining large mold
* Through coolant

 PRODUCT CODE FLUTE NO. DIMENSIONS (mm) INSERTS
Dc Dm H ap
 FM1-90C50BR04SD12-22A 4 50 22 40 2 SDMT1205…
 FM1-90C63BR05SD12-22A 5 63 22 40 2 SDMT1205…
 FM1-90C63BR04SD15-22A 4 63 22 40 3 SDMT1505…
 FM1-90C80BR05SD15-27A 5 80 27 50 3 SDMT1505…
 FM1-90C100BR06SD15-32A 6 100 32 50 3 SDMT1505…



SDMT12/15 HIGH-FEED MILLING

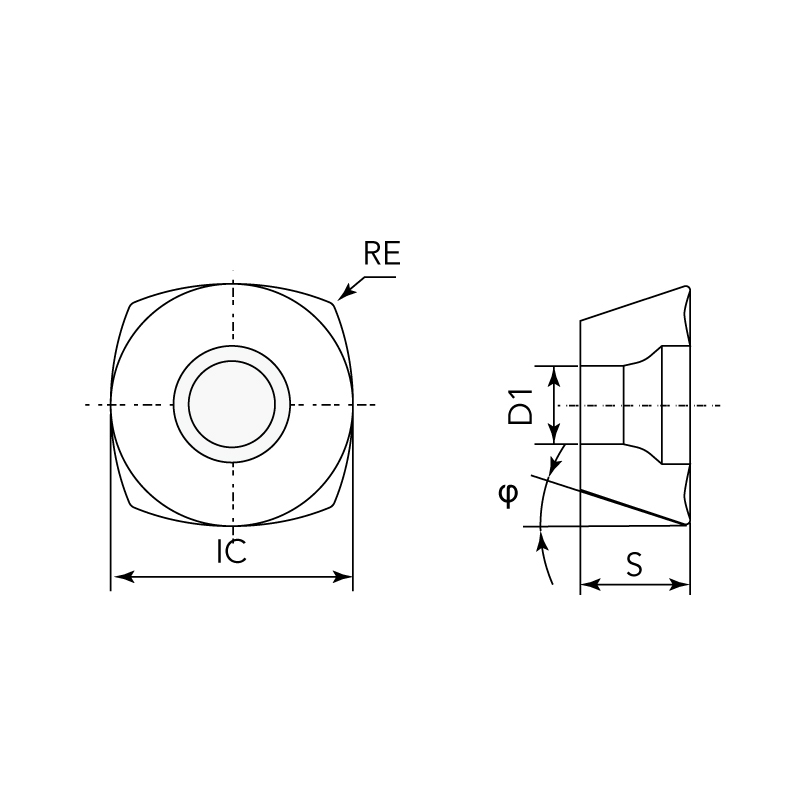

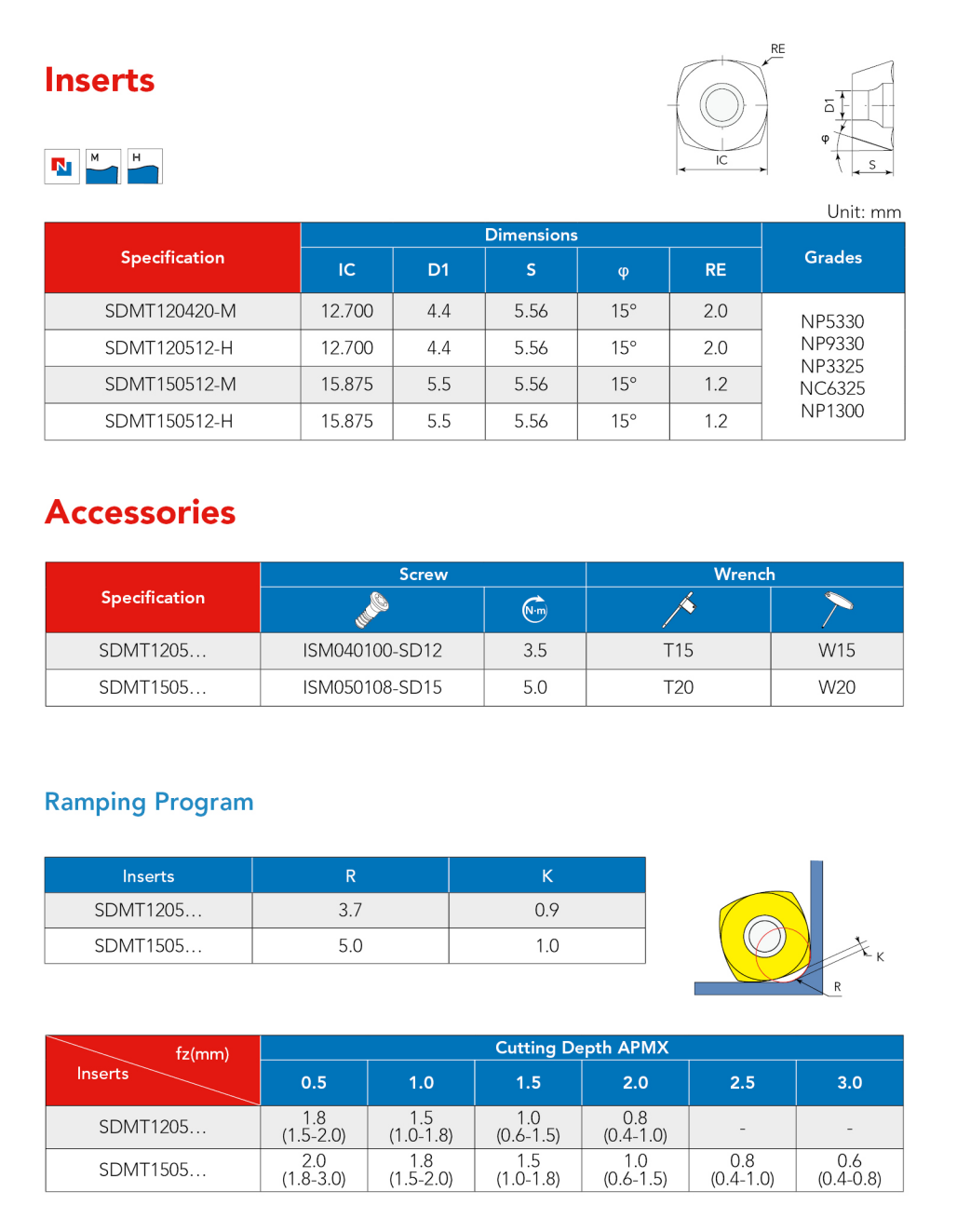

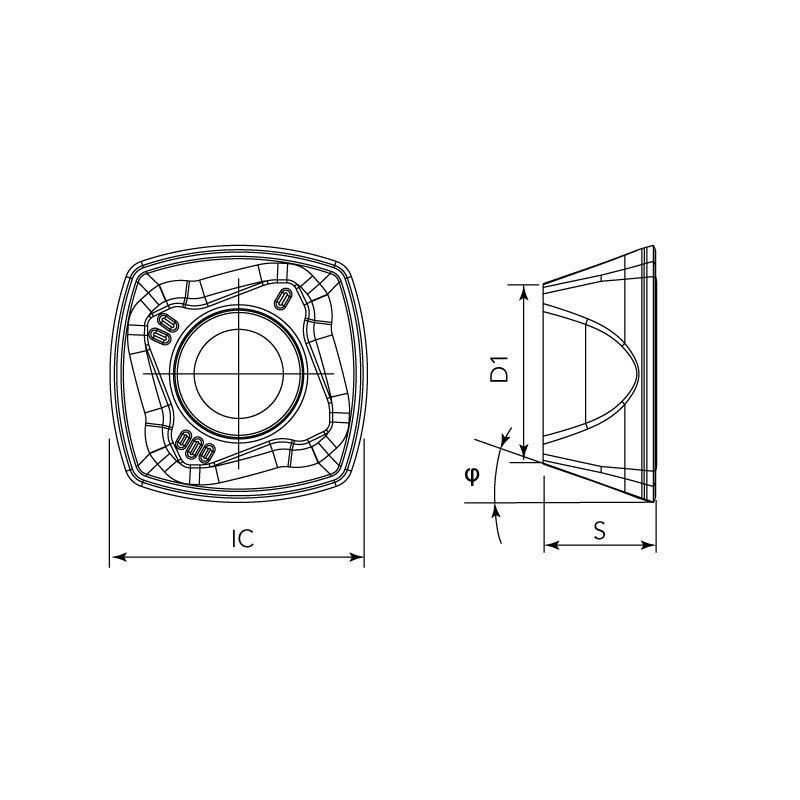

INSERTS

SDMT12/15 HIGH-FEED MILLING
