SHOULDER MILLING TOOLS
FM2-90C-AN12/16 (SHELL MILL)
Features:
* Diameter Range: Ø50mm-Ø80mm
* Square Shoulder application
* Double sided negative insert with positive cutting
* High material removal rate

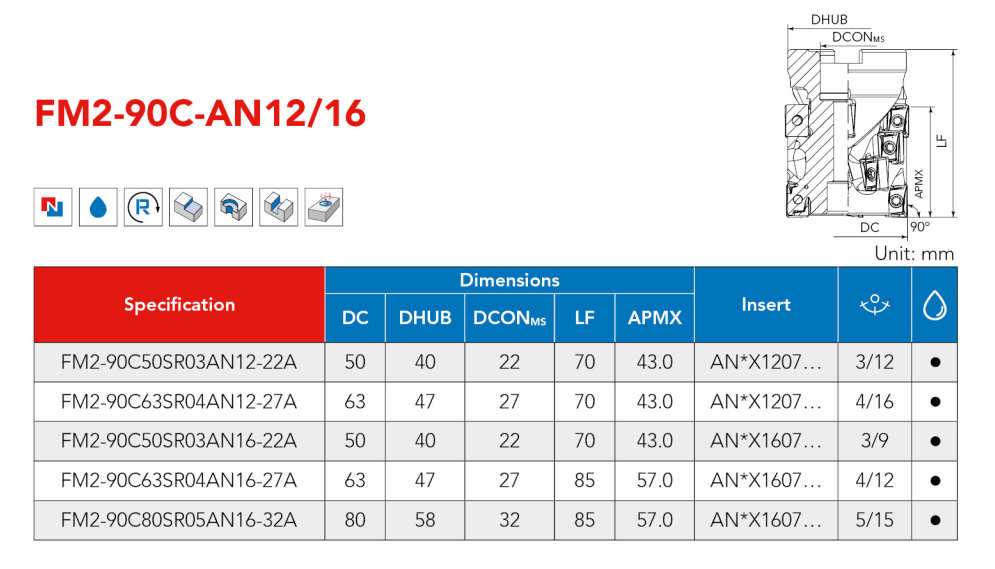

PRODUCT CODE |
FLUTE NO. |

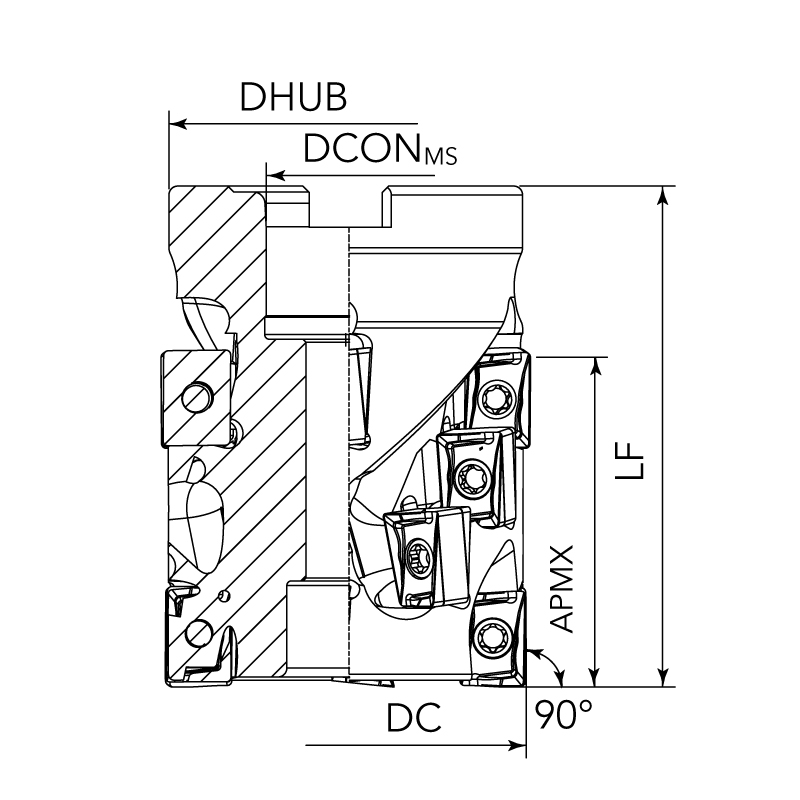

DIMENSIONS (mm) |
INSERTS |
Dc |
Dm |
H |
ap |
FM2-90C50SR03AN12-22A |
3/12 |
50 |
22 |
70 |
43 |
ANKX1207… |

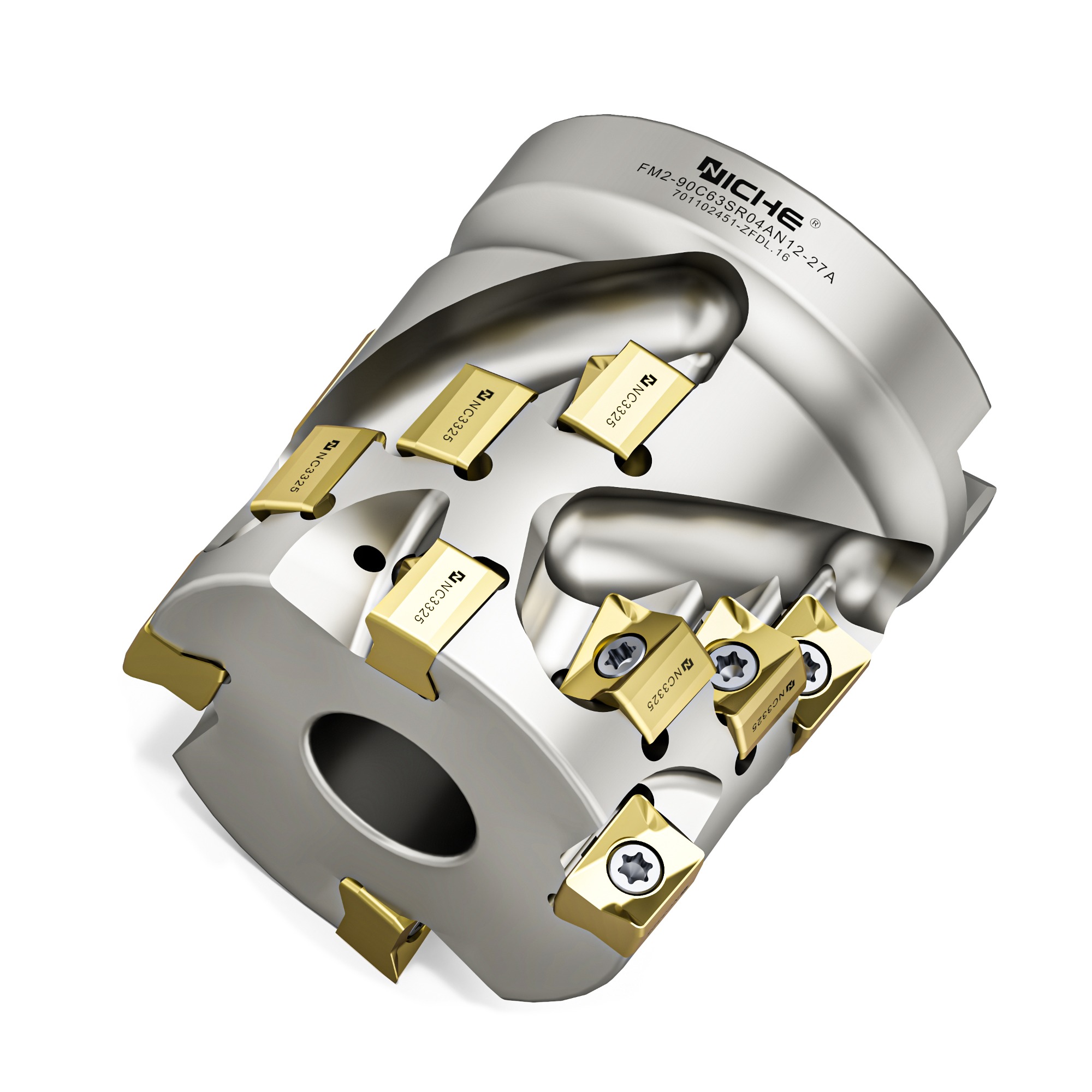

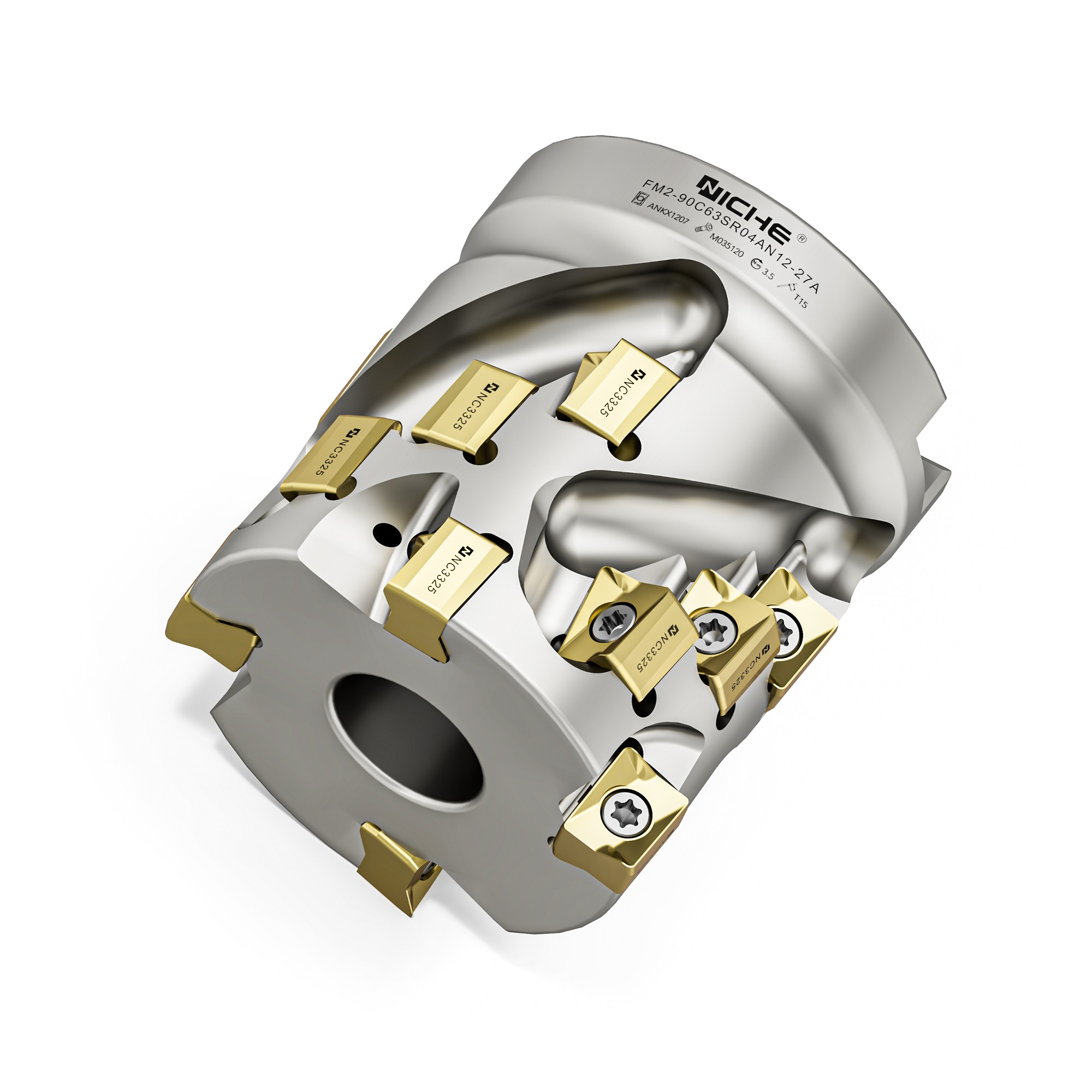

FM2-90C63SR04AN12-27A |
4/16 |
63 |
27 |
70 |
43 |
ANKX1207… |

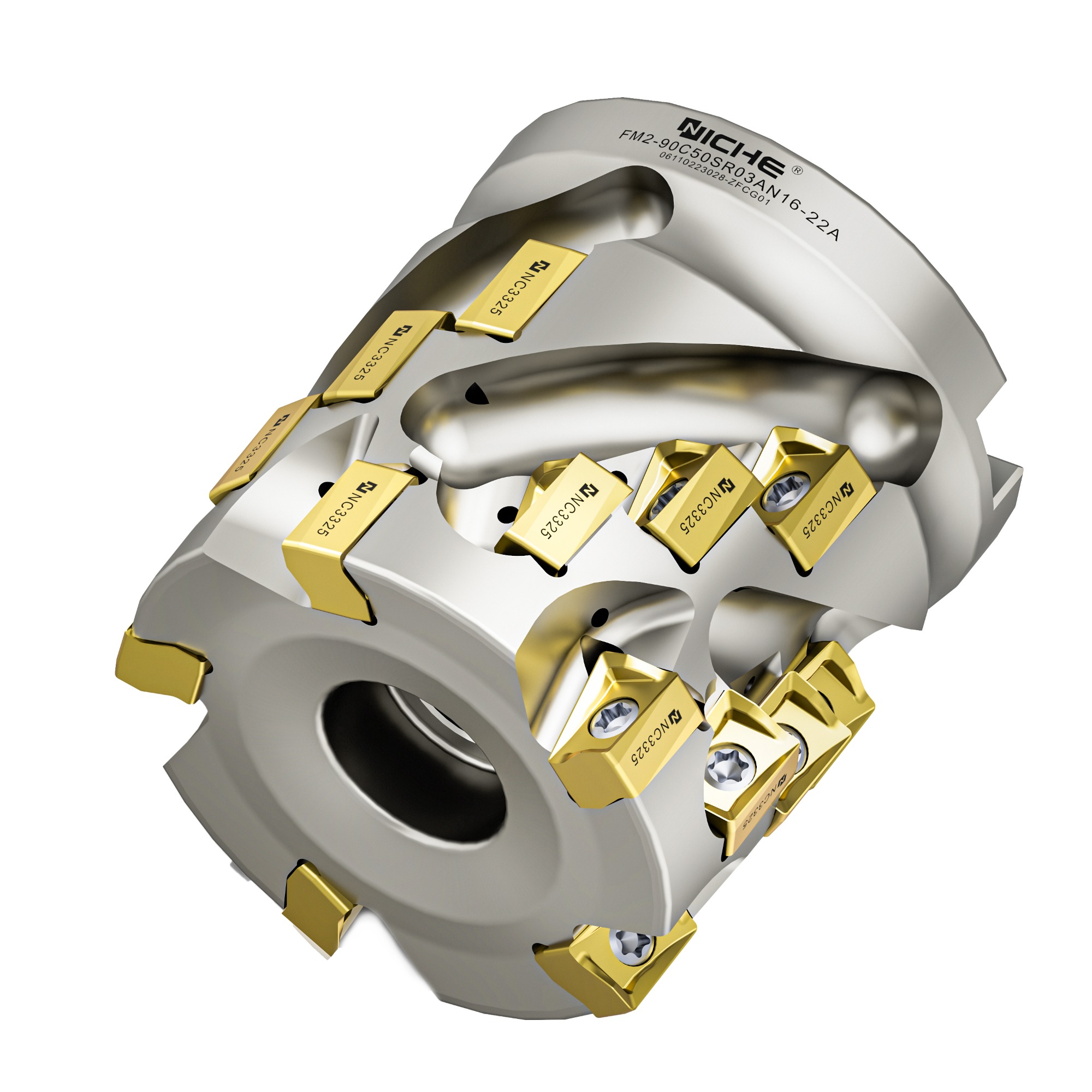

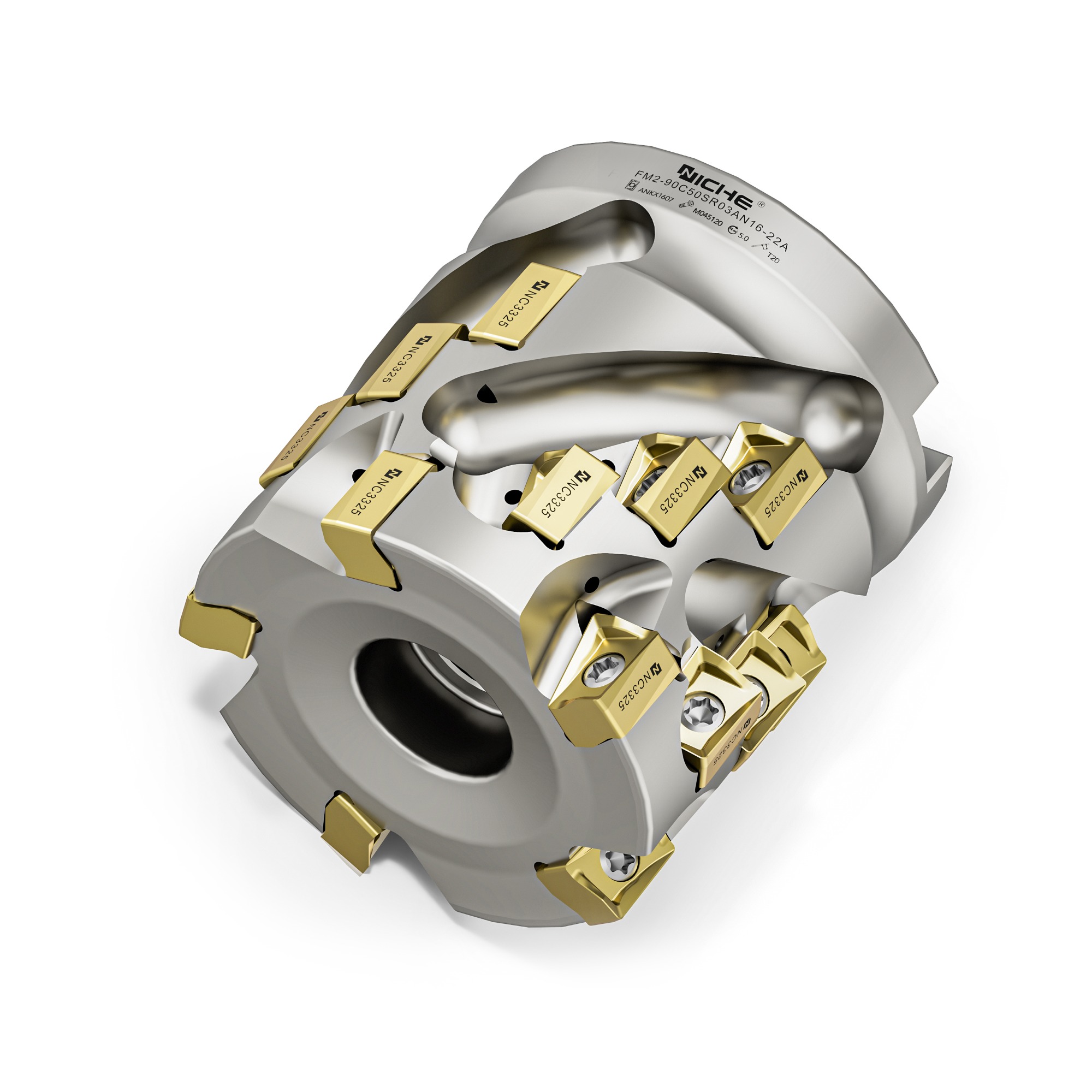

FM2-90C50SR03AN16-22A |
3/9 |
50 |
22 |
70 |
43 |
ANKX1607… |
FM2-90C63SR04AN16-27A |
4/12 |
63 |
27 |
85 |
57 |
ANKX1607… |
FM2-90C80SR05AN16-32A |
5/15 |
80 |
32 |
85 |
57 |
ANKX1607… |

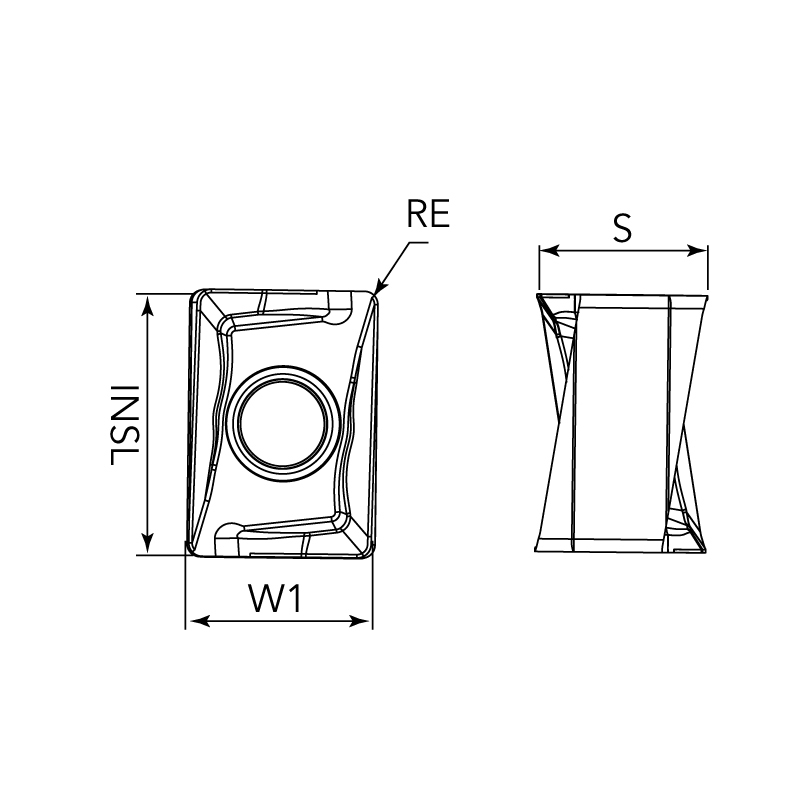

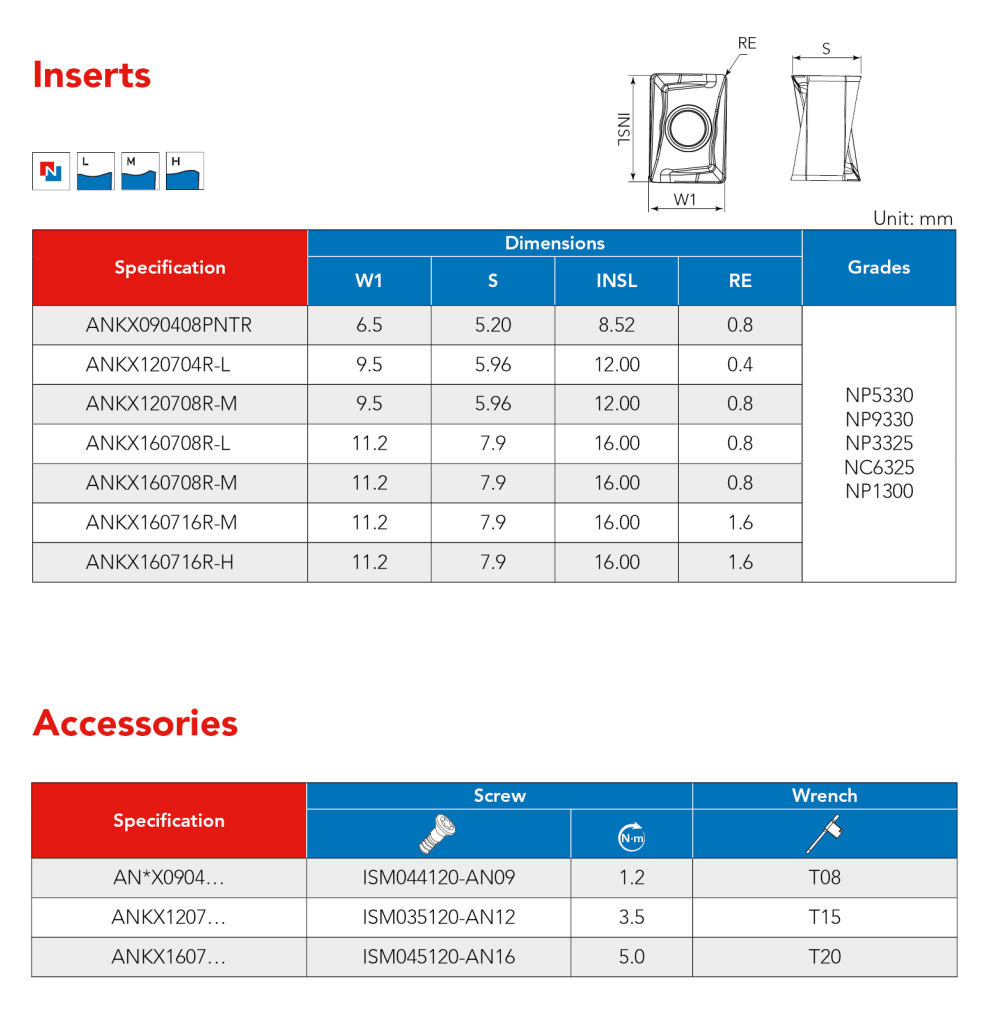

INSTERTS
