SHOULDER MILLING TOOLS

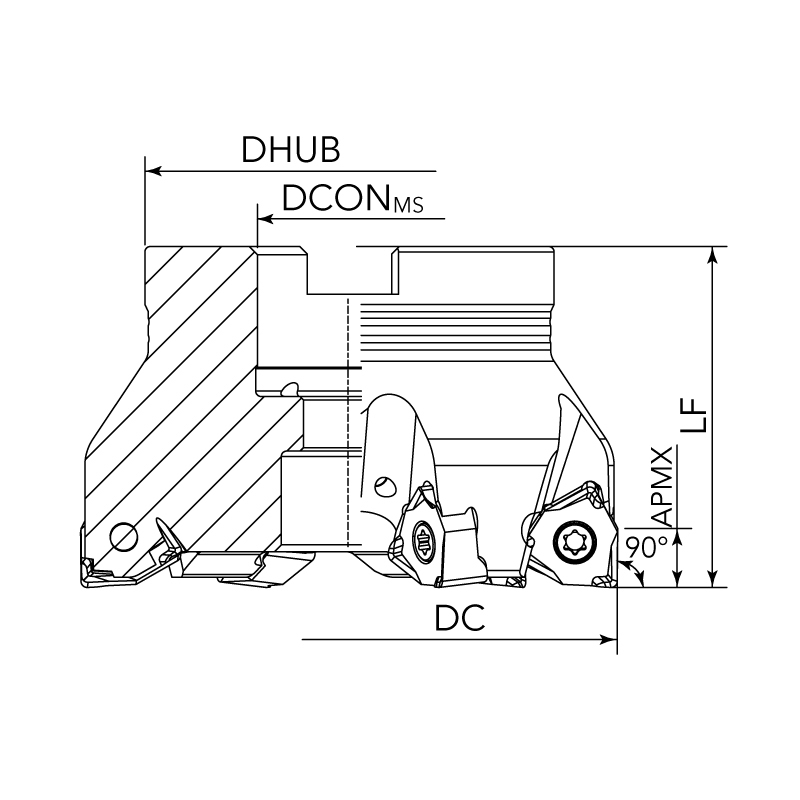

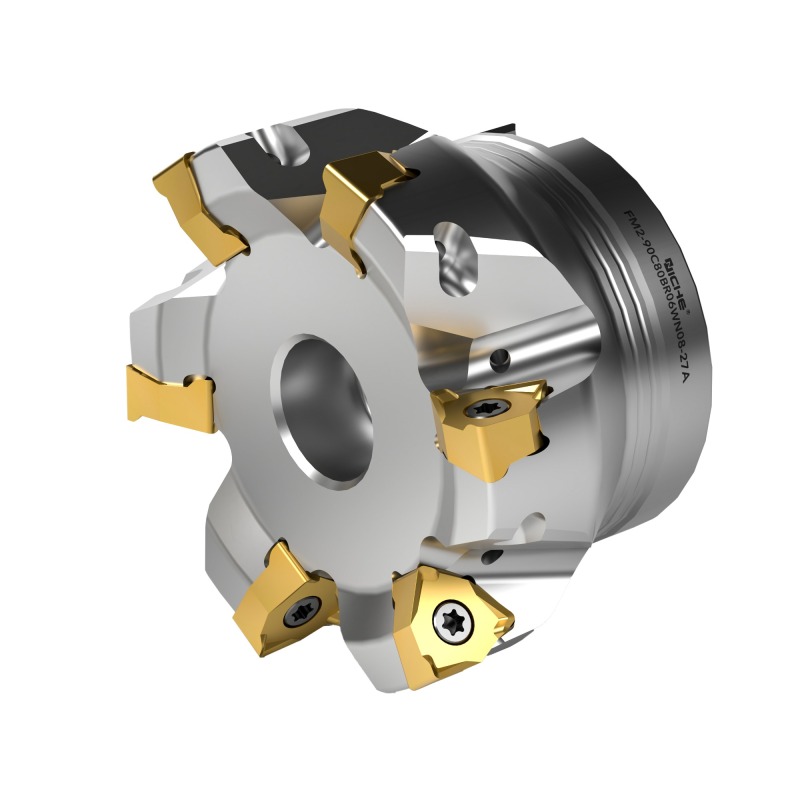

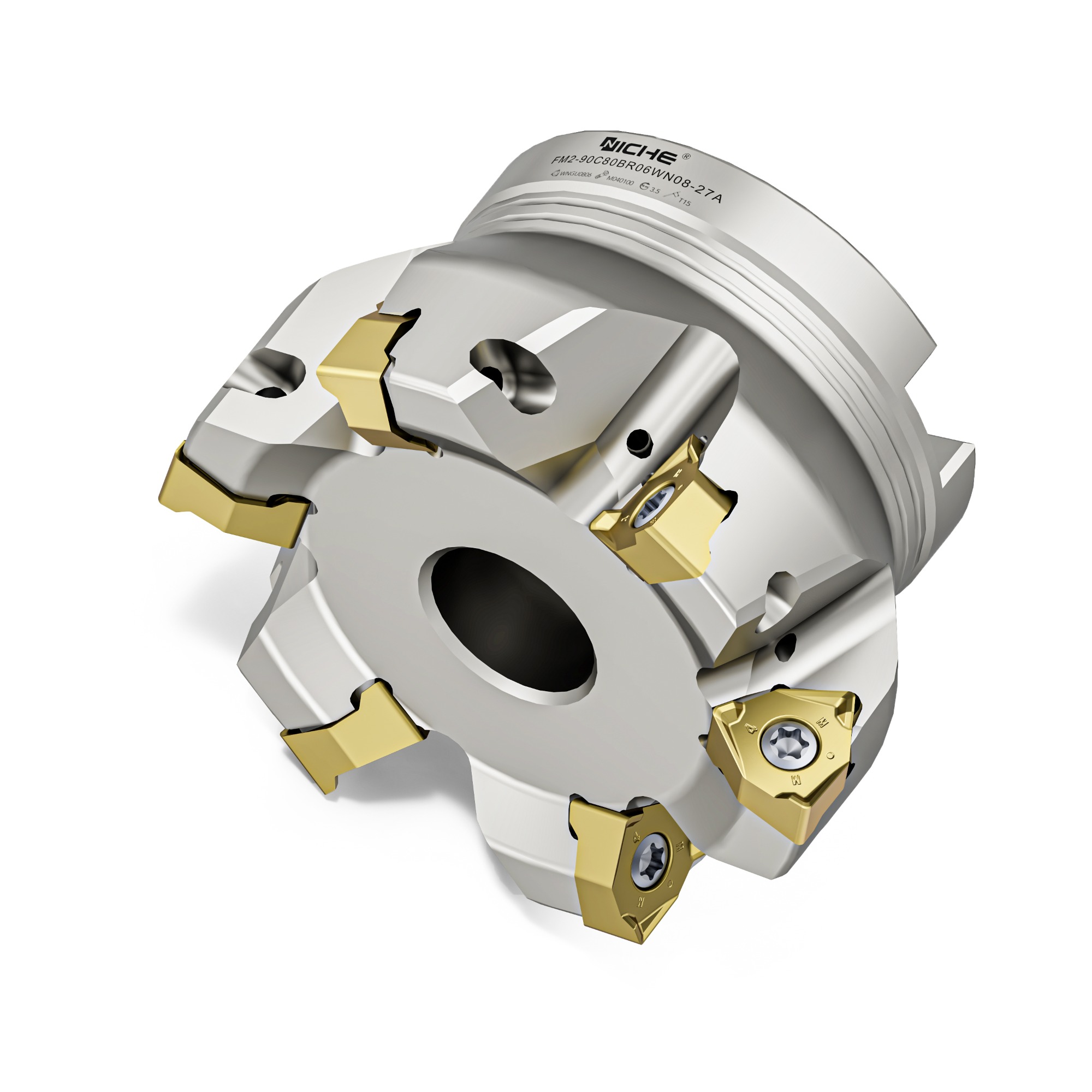

FM2-90C-WN08 (FACE MILL)
Features:
* Diameter Range: Ø50mm-Ø160mm
* Square Shoulder application
* Double sided negative insert with positive cutting
* High material removal rate

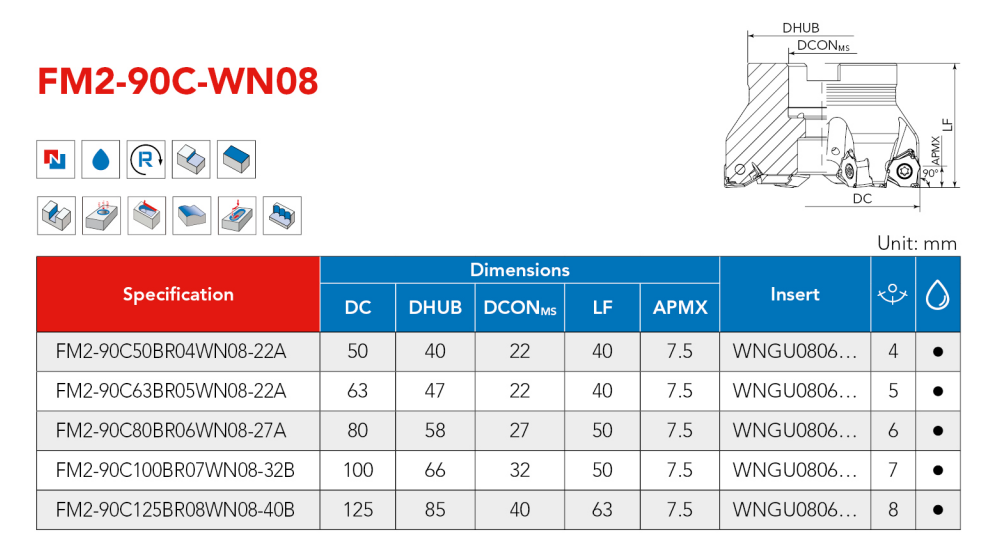

| PRODUCT CODE |
FLUTE NO. |
DIMENSIONS (mm) |
INSERTS |
| Dc |
Dm |
H |
ap |
| FM2-90C50BR04WN08-22A |
4 |
50 |
22 |
40 |
7.5 |
WNGU0806… |
| FM2-90C63BR05WN08-22A |
5 |
63 |
22 |
40 |
7.5 |
WNGU0806… |
| FM2-90C80BR06WN08-27A |
6 |
80 |
27 |
50 |
7.5 |
WNGU0806… |
| FM2-90C100BR07WN08-32B |
7 |
100 |
32 |
50 |
7.5 |
WNGU0806… |
| FM2-90C125BR08WN08-40B |
8 |
125 |
40 |
63 |
7.5 |
WNGU0806… |
| FM2-90C160BR12WN08-40C |
12 |
160 |
40 |
63 |
7.5 |
WNGU0806… |

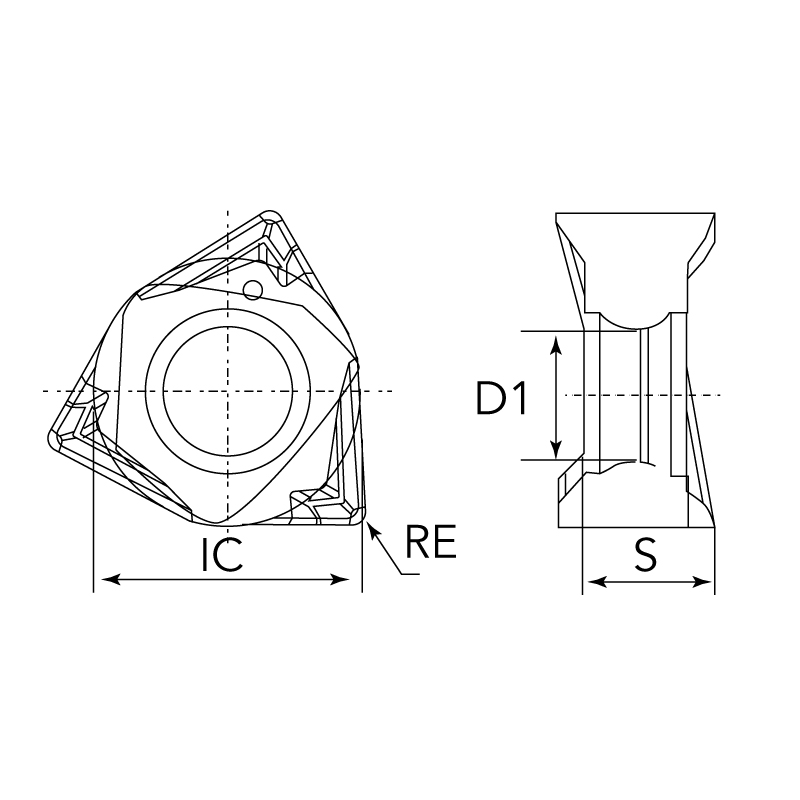

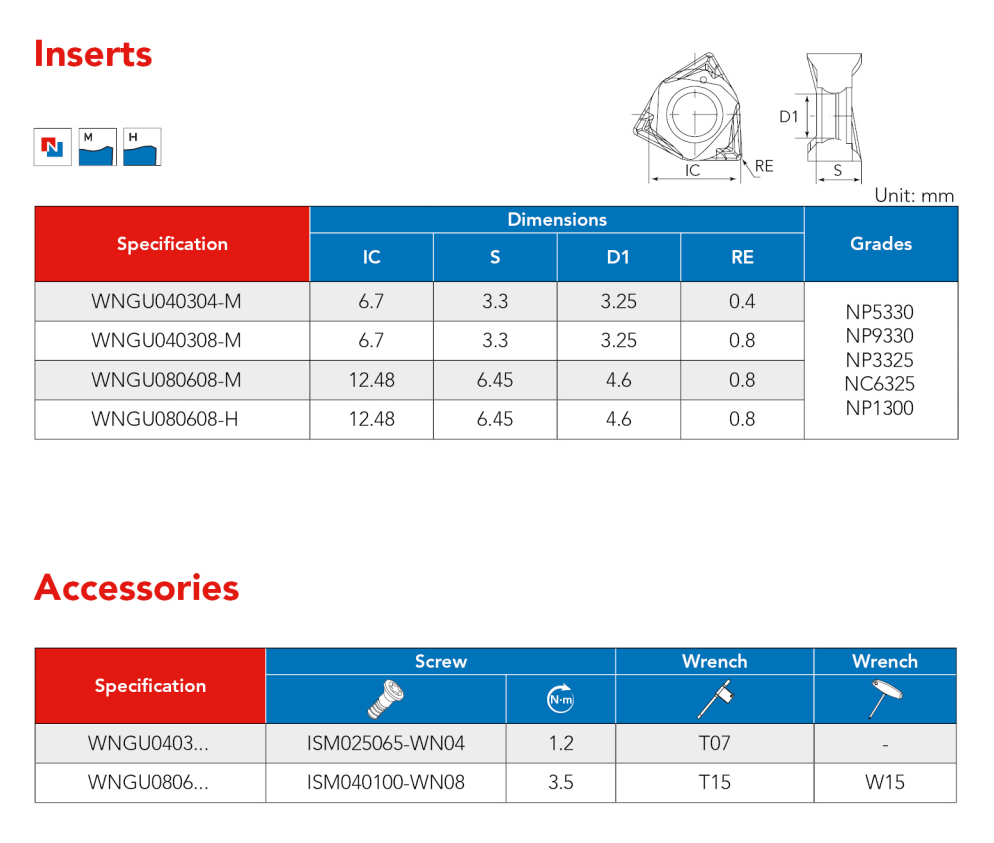

INSERTS
