FACE MILLING TOOLS

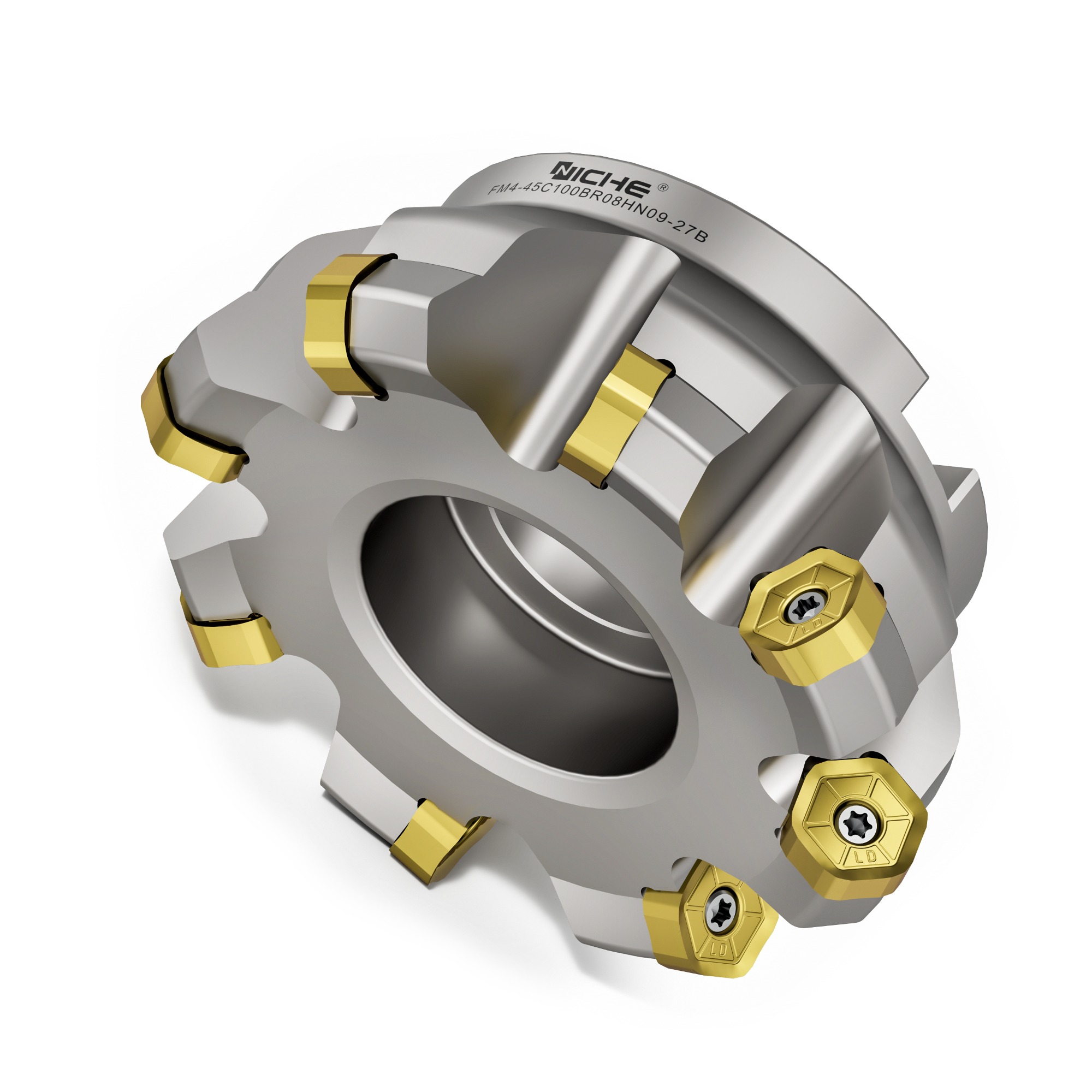

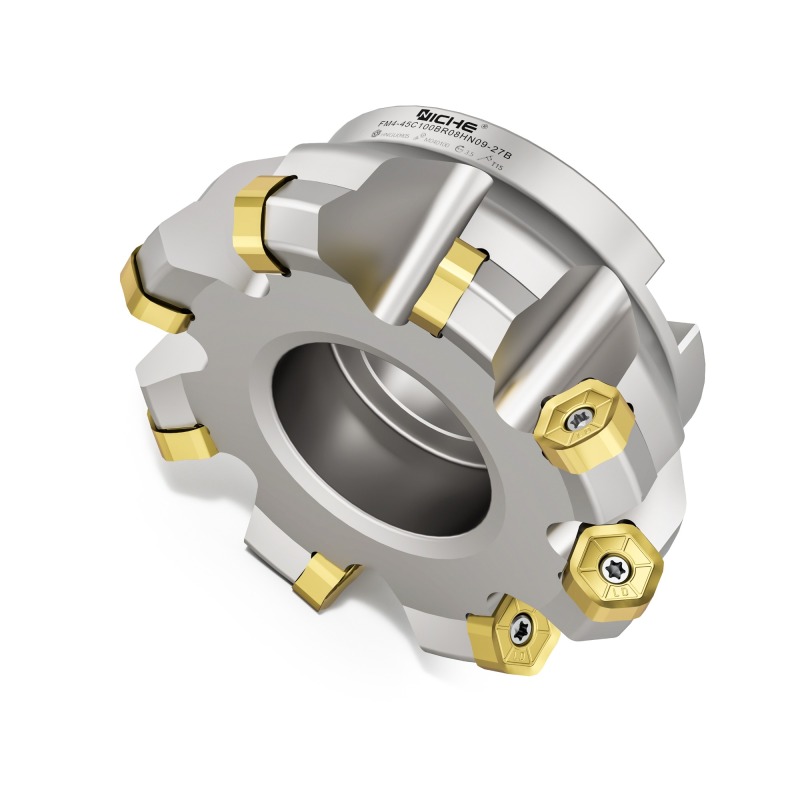

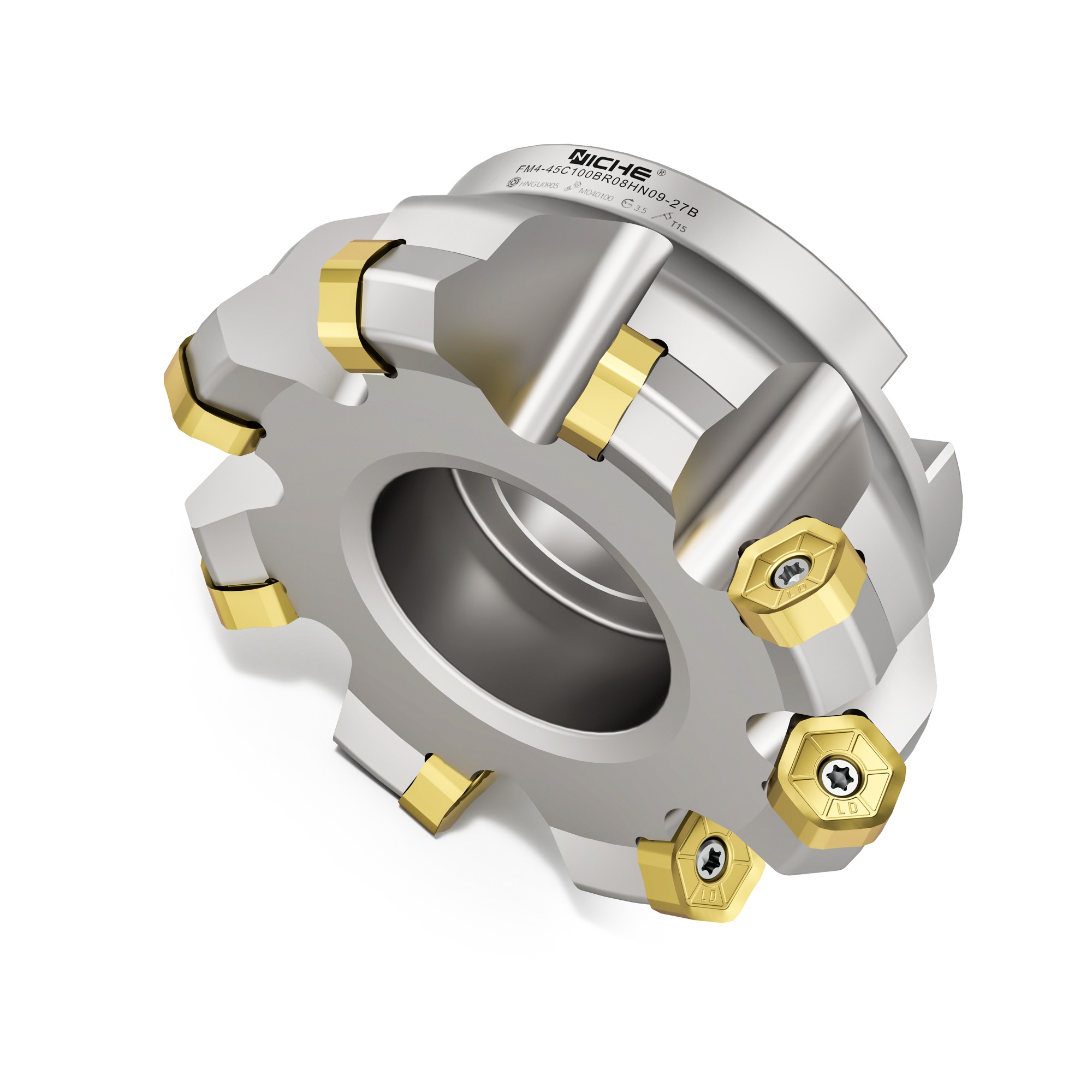

FM4-45C-HN0905 (FACE MILL)
Features:
* Diameter Range: Ø50mm-Ø125mm
* Face Milling application
* Double sided negative insert with positive cutting
* High material removal rate

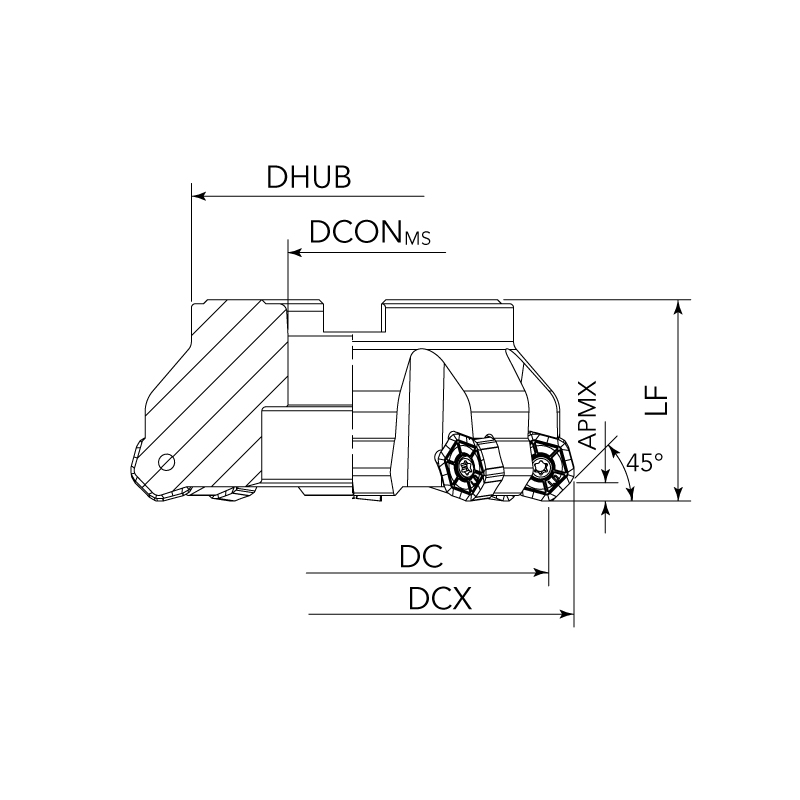

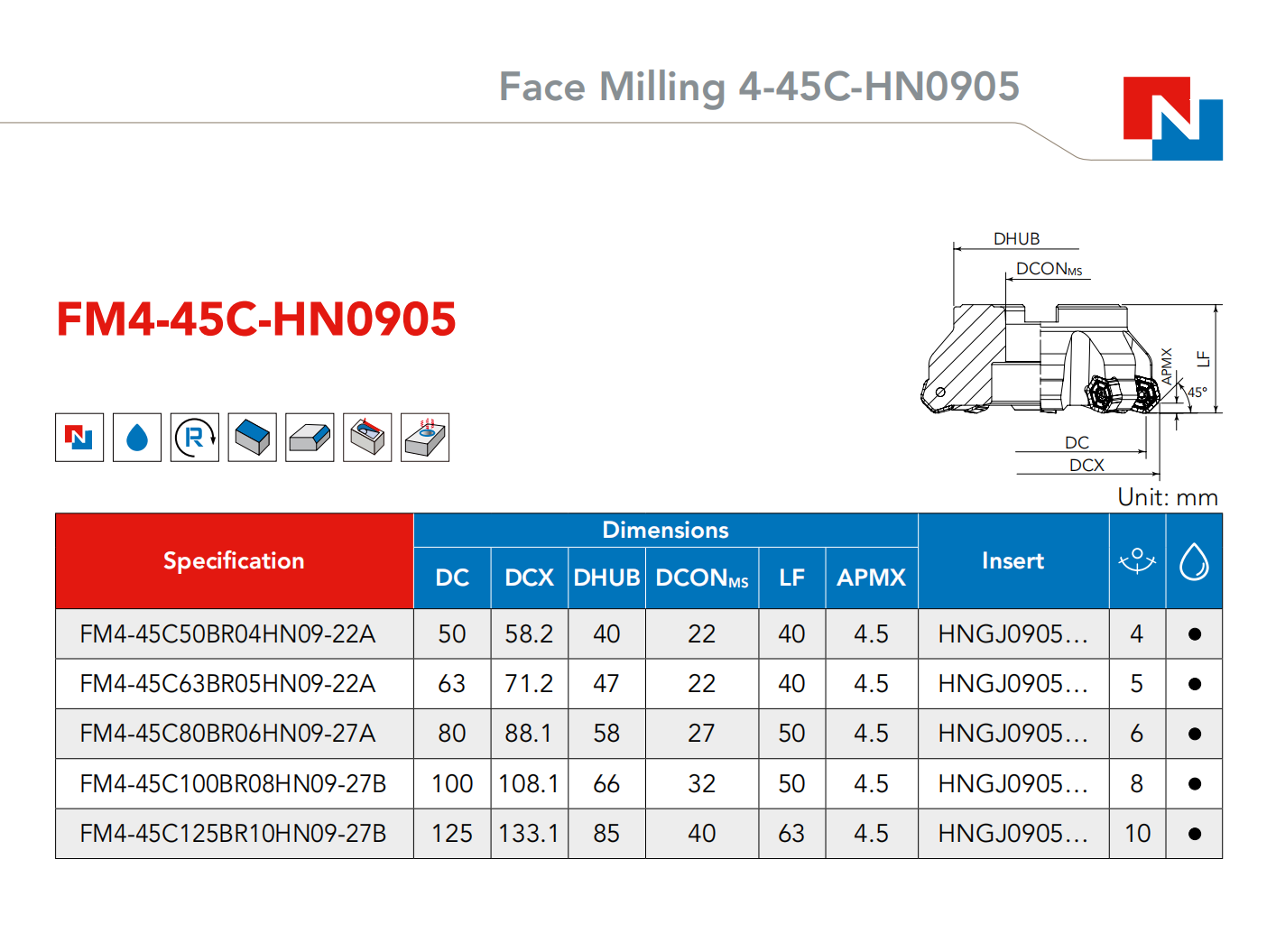

| PRODUCT CODE |
Dimensions (mm) |
INSERTS |
FLUTE NO. |
| DC |
DCX |
DHUB |
DCONMS |
LF |
APMX |
| FM4-45C50BR04HN09-22A |
50 |
58.2 |
40 |
22 |
40 |
4.5 |
HNGJ0905… |
4 |
| FM4-45C63BR05HN09-22A |
63 |
71.2 |
47 |
22 |
40 |
4.5 |
HNGJ0905… |
5 |
| FM4-45C80BR06HN09-27A |
80 |
88.1 |
58 |
27 |
50 |
4.5 |
HNGJ0905… |
6 |
| FM4-45C100BR08HN09-27B |
100 |
108.1 |
66 |
32 |
50 |
4.5 |
HNGJ0905… |
8 |
| FM4-45C125BR10HN09-27B |
125 |
133.1 |
85 |
40 |
63 |
4.5 |
HNGJ0905… |
10 |

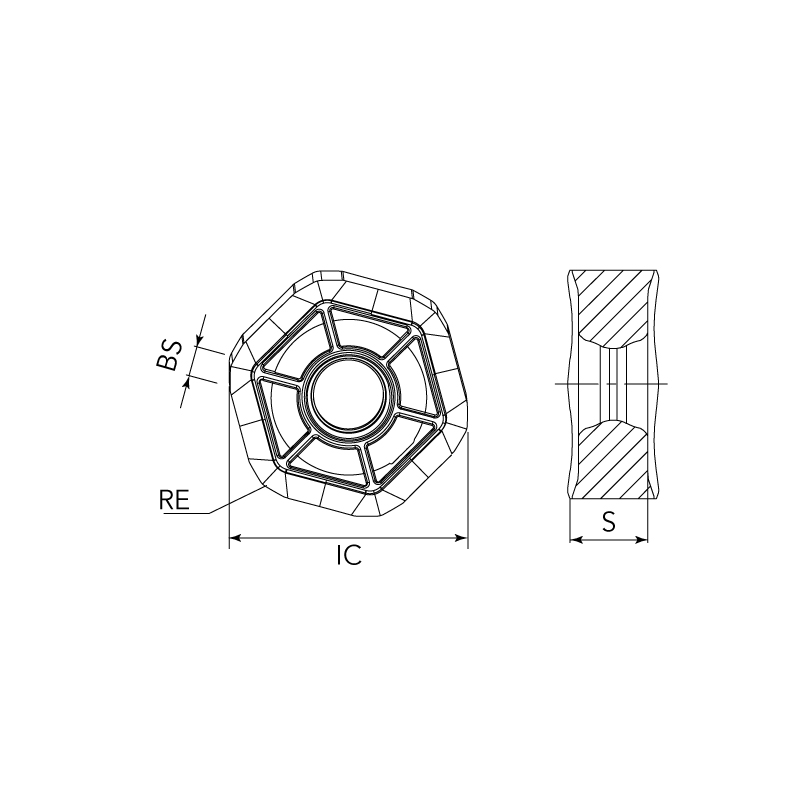

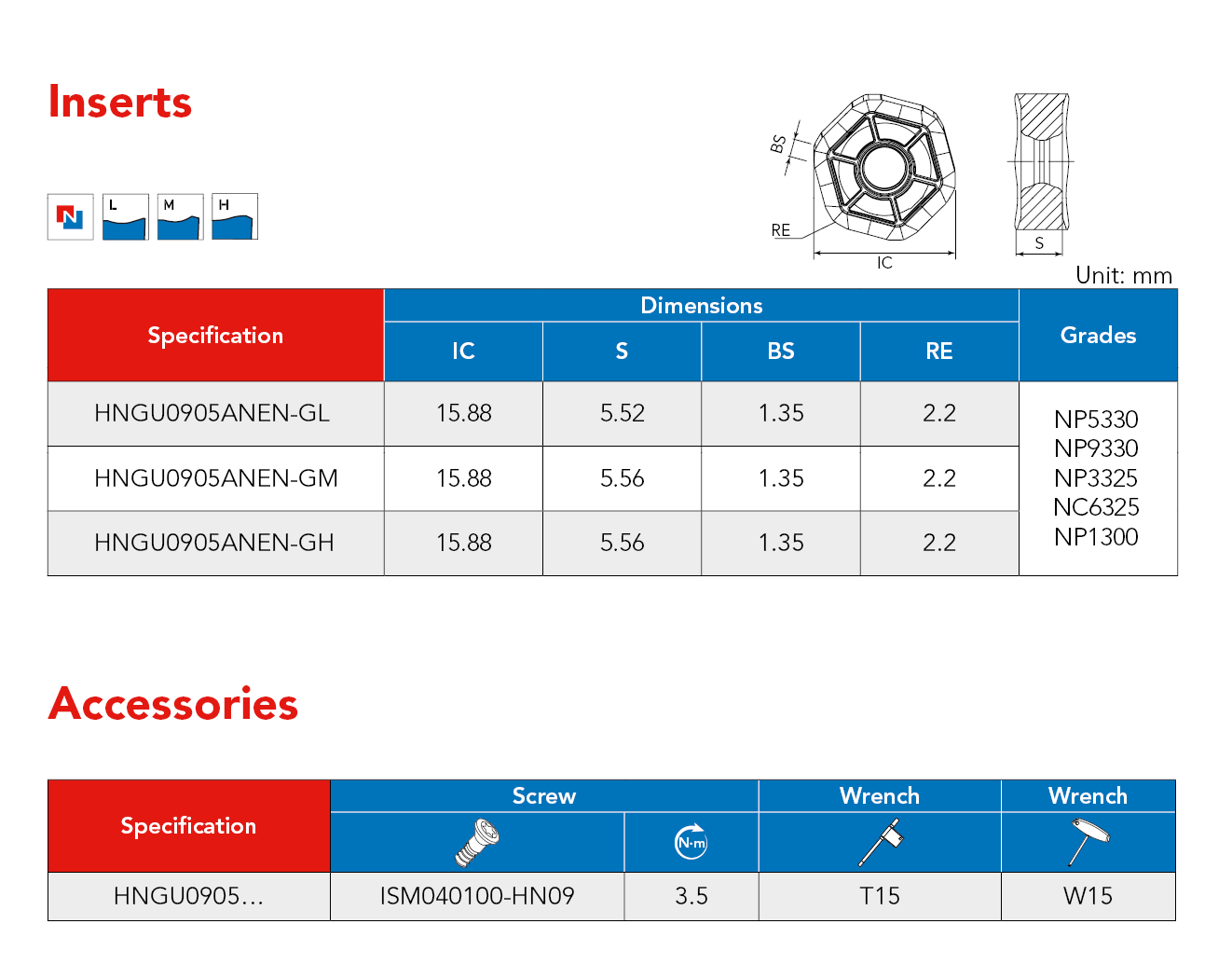

INSERTS
