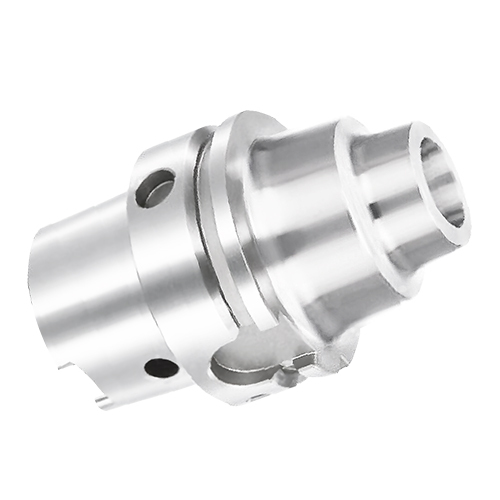

Shrink Fit Holder
HSK-A-DSF HSK50A / HSK63A / HSK100A
Feature
* Taper 7:24; ≤AT3.
* Locked with internal pull stud, Precise positioning.
* A wide clamping range (D3-D12mm) is available with different exenders, which reduces production cost and increases efficiency.
* 3° Taper-off design minimizes interference.
* With superior-quality steel with good CTE. (CTE:The coefficient of thermal expansion).
* Balanced: G2.5; 25,000 rpm.
* Runout (X3D): ⩽0.003 mm.
Specification |
D |
d1 |
d2 |
L |
L1 |
Tension screw |
Stop nut |
Wrench |
Weight |
HSK50A-DSF12-100 |
50 |
38 |
- |
100 |
74 |
E100Z300 |
ZD12-1 |
T06-L |
0.8 |
HSK63A-DSF12-100 |
63 |
38 |
- |
100 |
74 |
E100Z300 |
ZD12-1 |
T06-L |
1.0 |
HSK63A-DSF12-135 |
63 |
38 |
- |
135 |
109 |
E100Z300 |
ZD12-1 |
T06-L |
1.7 |
HSK100A-DSF12-105 |
100 |
38 |
65 |
105 |
43 |
E100Z300 |
ZD12-1 |
T06-L |
3.4 |
