THREAD MILLING TOOLS

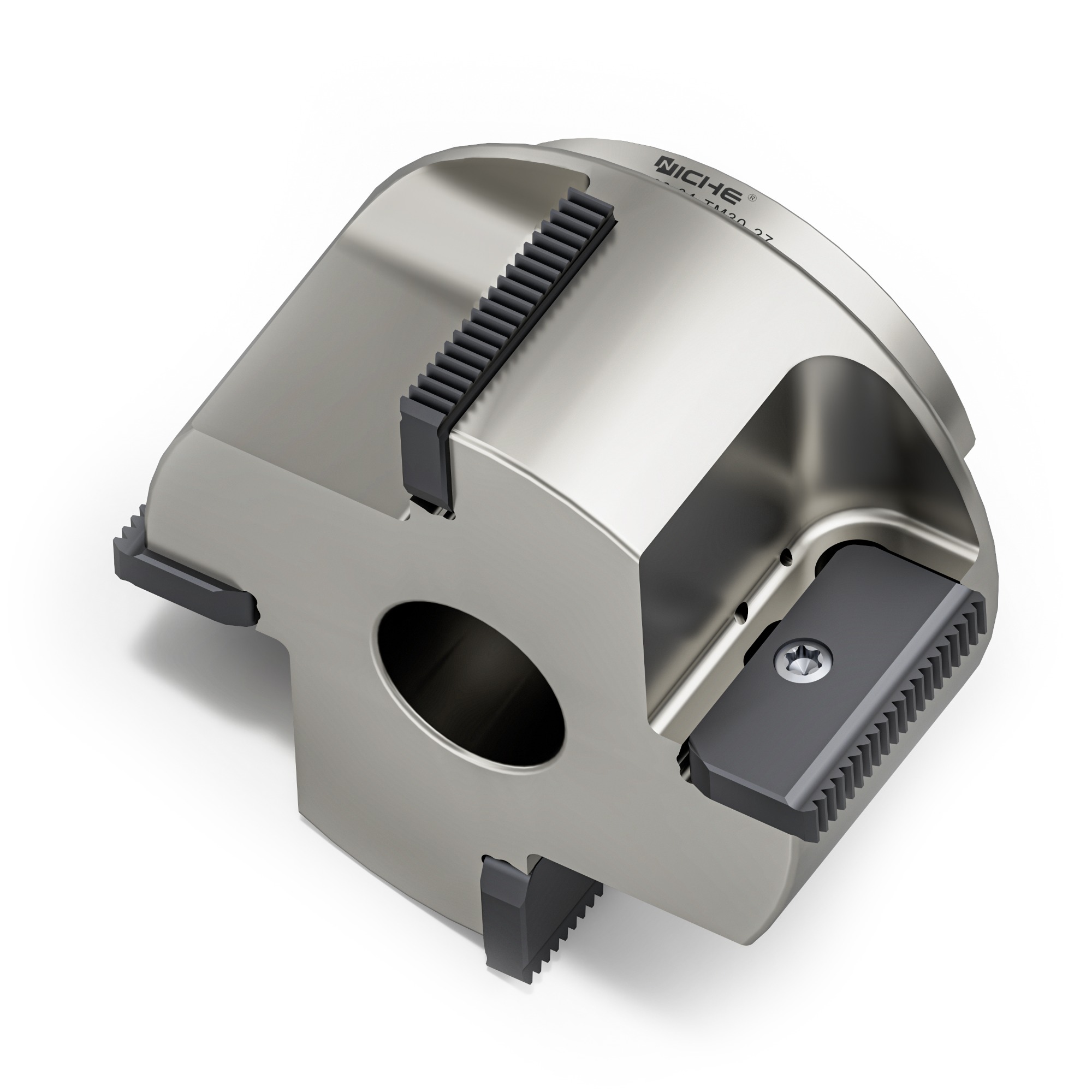

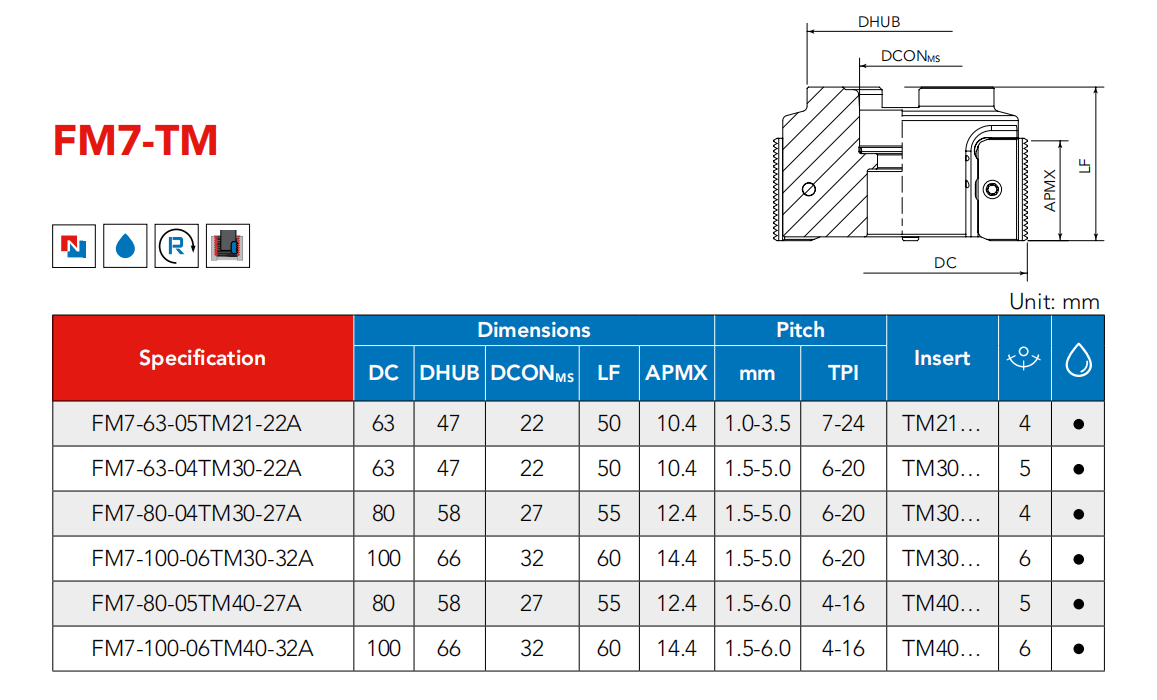

FM7-TM (FACE MILL)
Features:
* Diameter Range: Ø63mm-Ø100mm
* Thread Milling application
* High rigdity

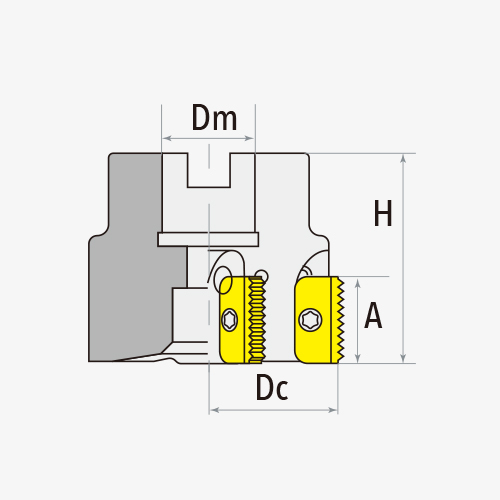

| PRODUCT CODE |
DIMENSIONS (mm) |
INSERTS |
PITCH |
FLUTE NO.
|

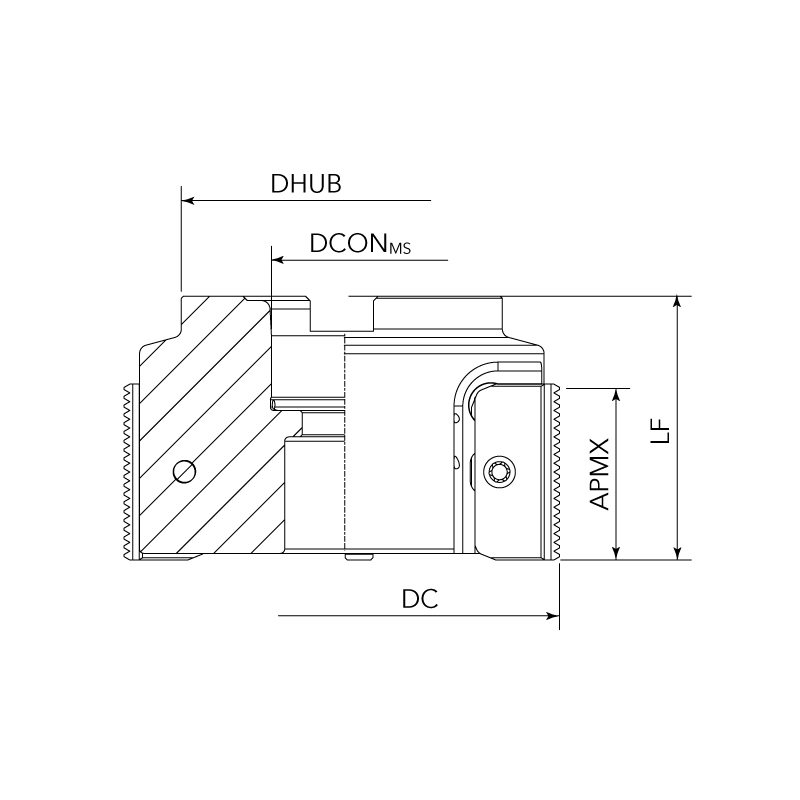

| DC |
DHUB |
DCONMS |
LF |
APMX |
mm |
TPI |
| FM7-63-05TM21-22A |
63 |
47 |
22 |
50 |
10.4 |
TM21… |
1.0-3.5 |
7-24 |
4 |
| FM7-63-04TM30-22A |
63 |
47 |
22 |
50 |
10.4 |
TM30… |
1.5-5.0 |
6-20 |
5 |
| FM7-80-04TM30-27A |
80 |
58 |
27 |
55 |
12.4 |
TM30… |
1.5-5.0 |
6-20 |
4 |
| FM7-100-06TM30-32A |
100 |
66 |
32 |
60 |
14.4 |
TM30… |
1.5-5.0 |
6-20 |
6 |
| FM7-80-05TM40-27A |
80 |
58 |
27 |
55 |
12.4 |
TM40… |
1.5-6.0 |
4-16 |
5 |
| FM7-100-06TM40-32A |
100 |
66 |
32 |
60 |
14.4 |
TM40… |
1.5-6.0 |
4-16 |
6 |

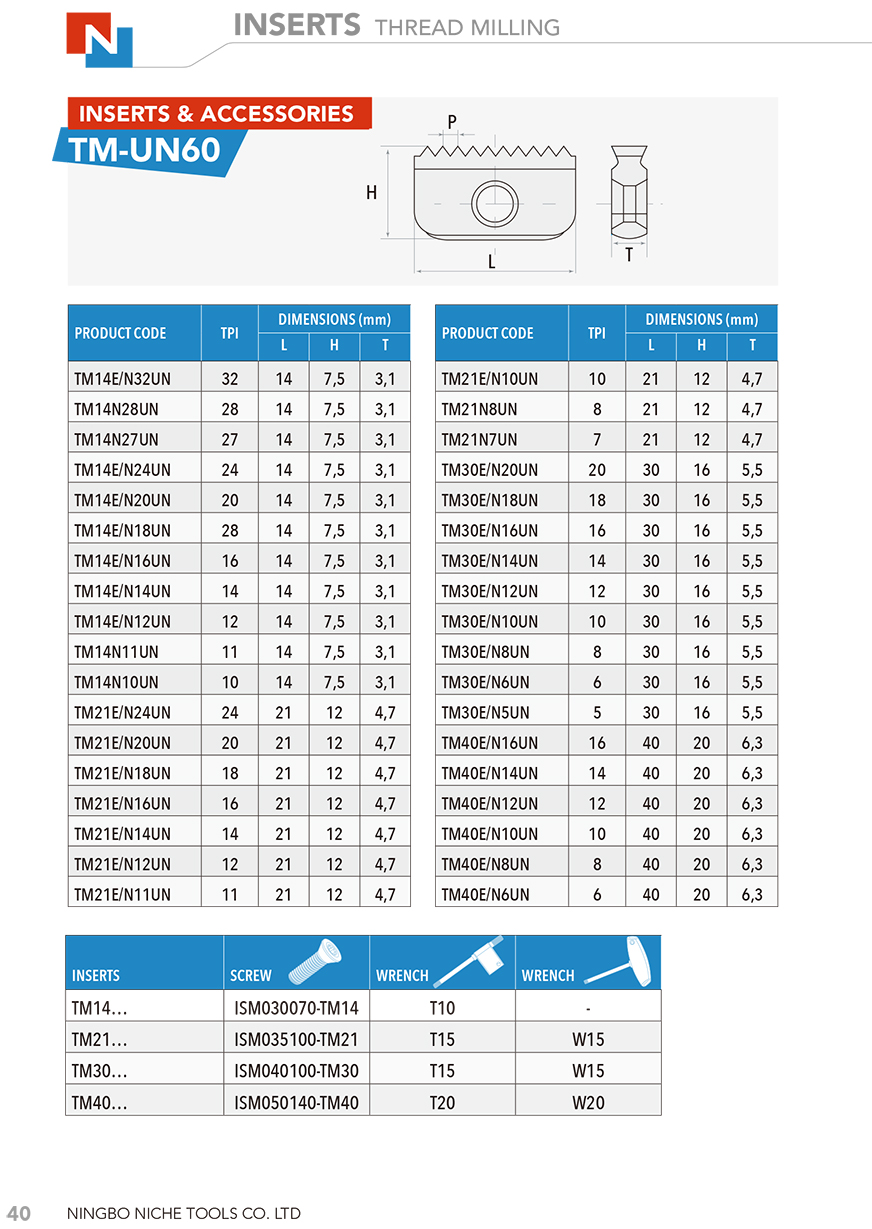

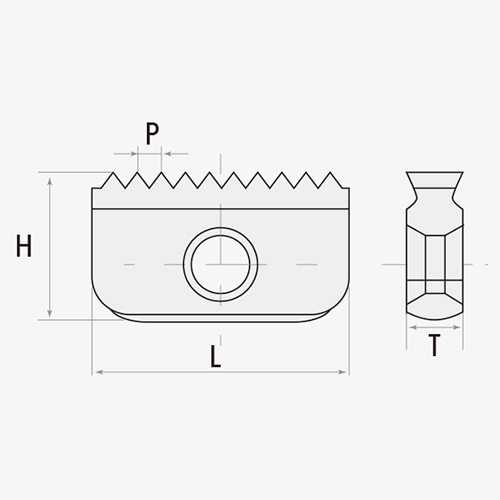

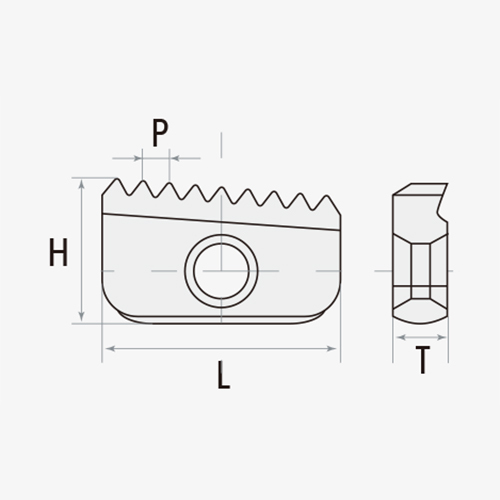

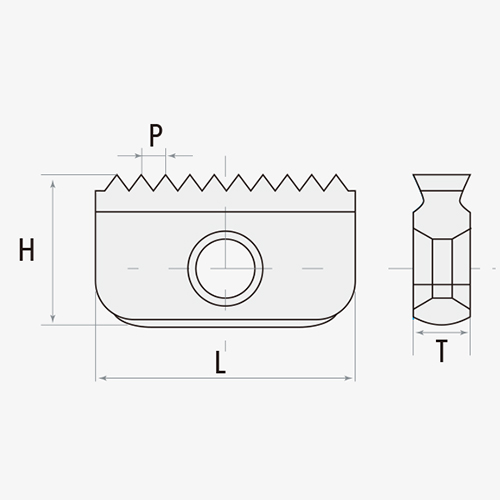

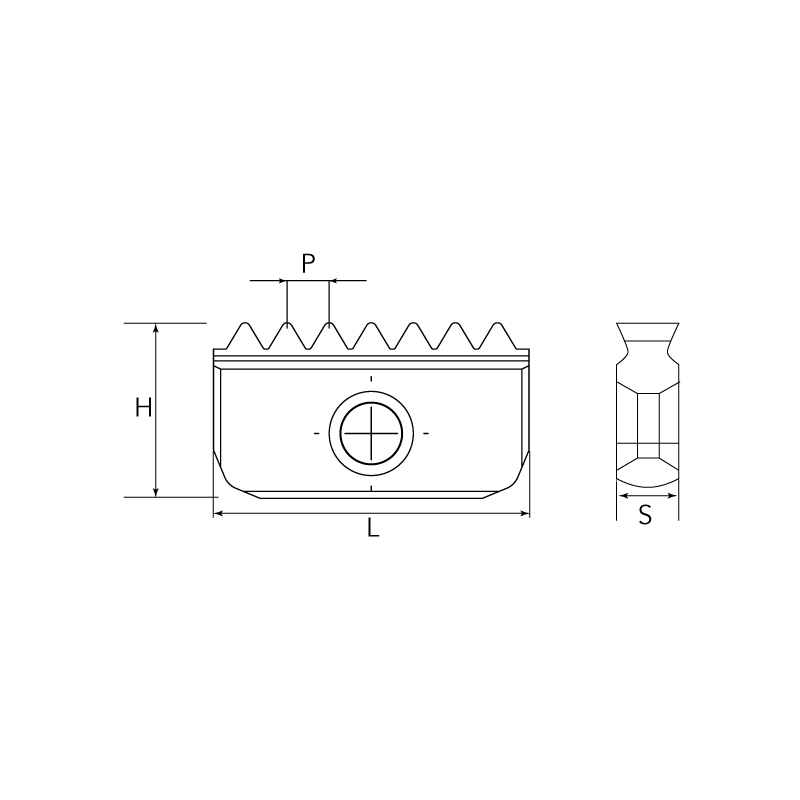

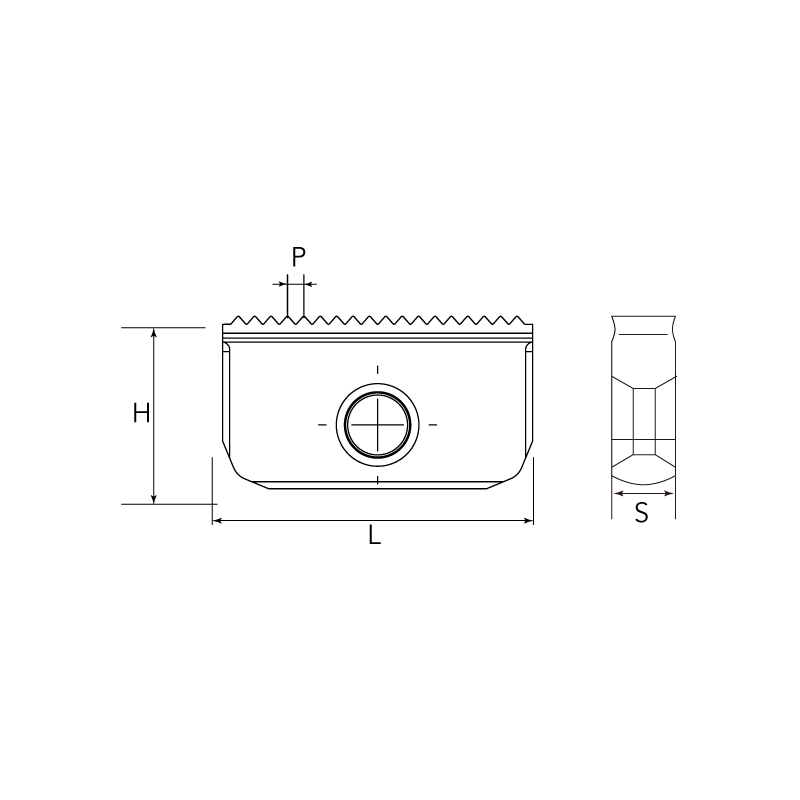

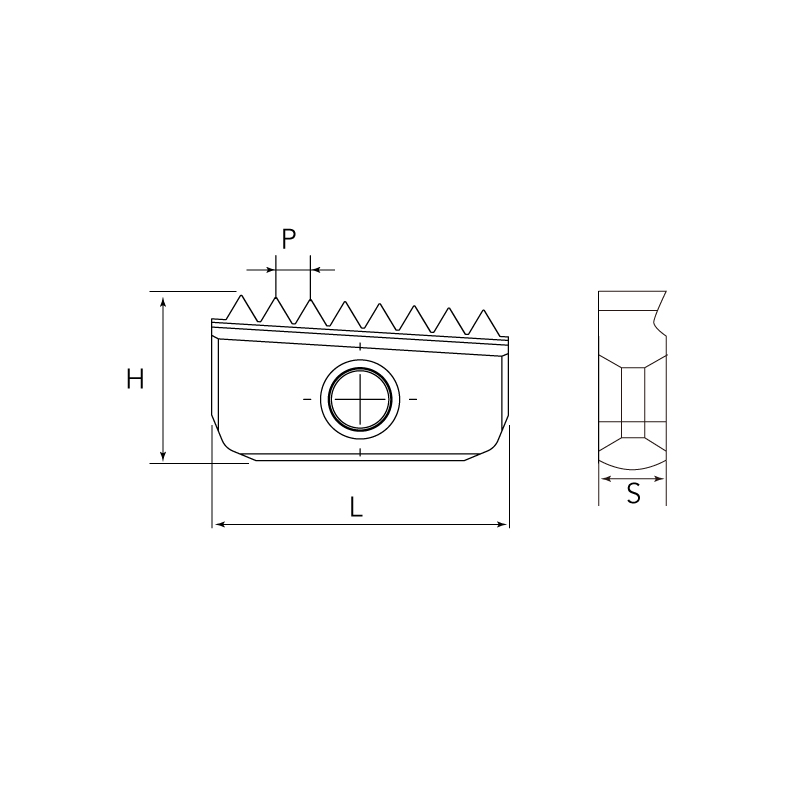

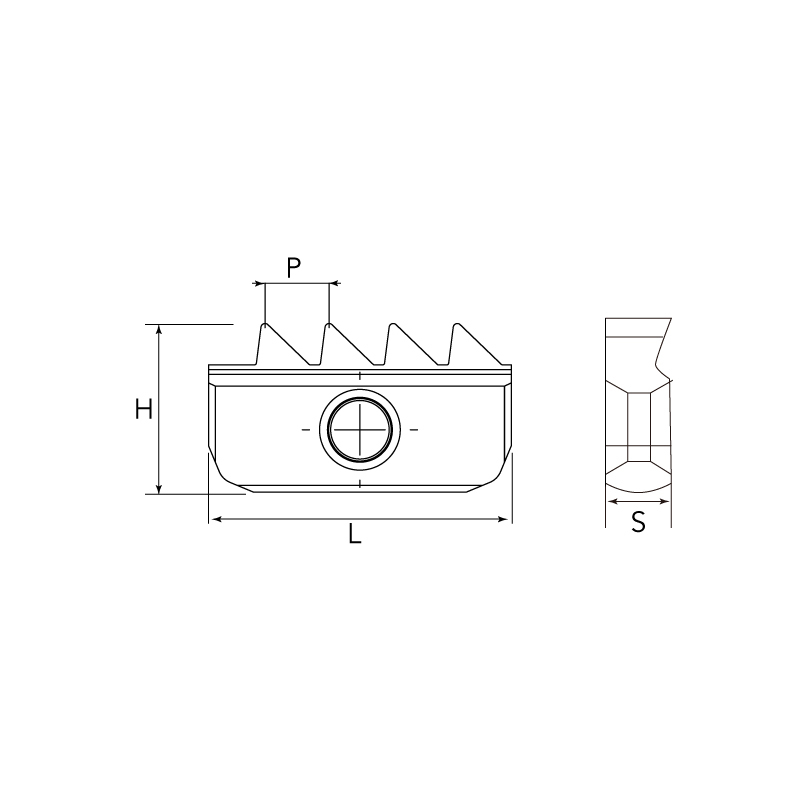

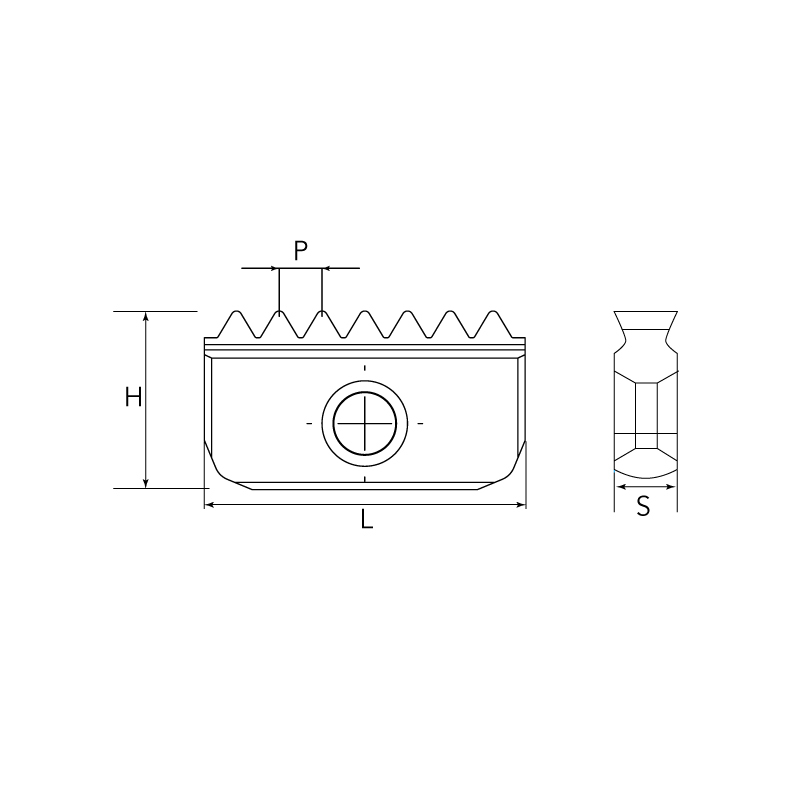

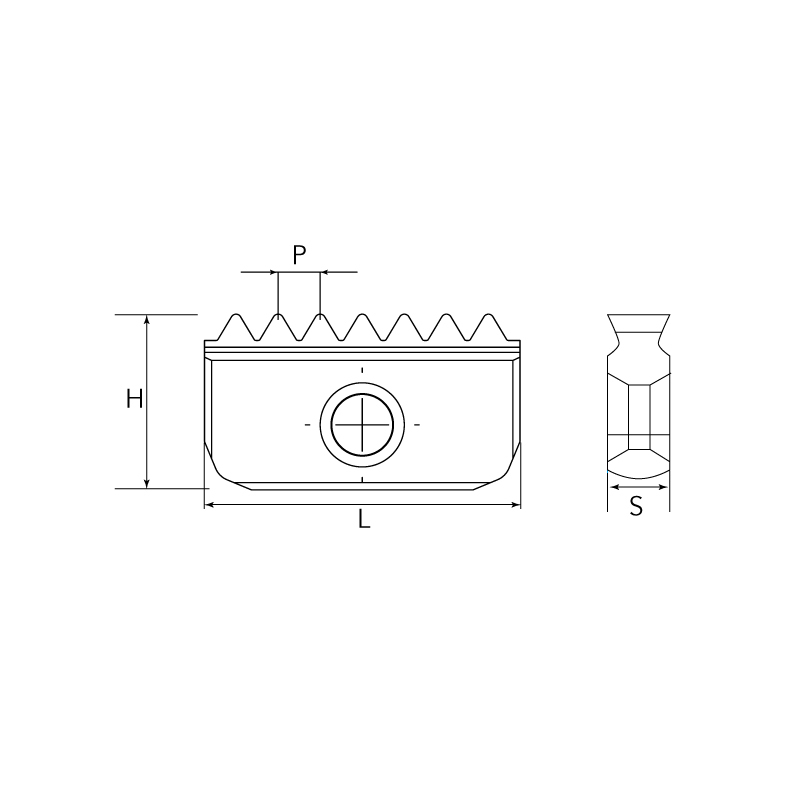

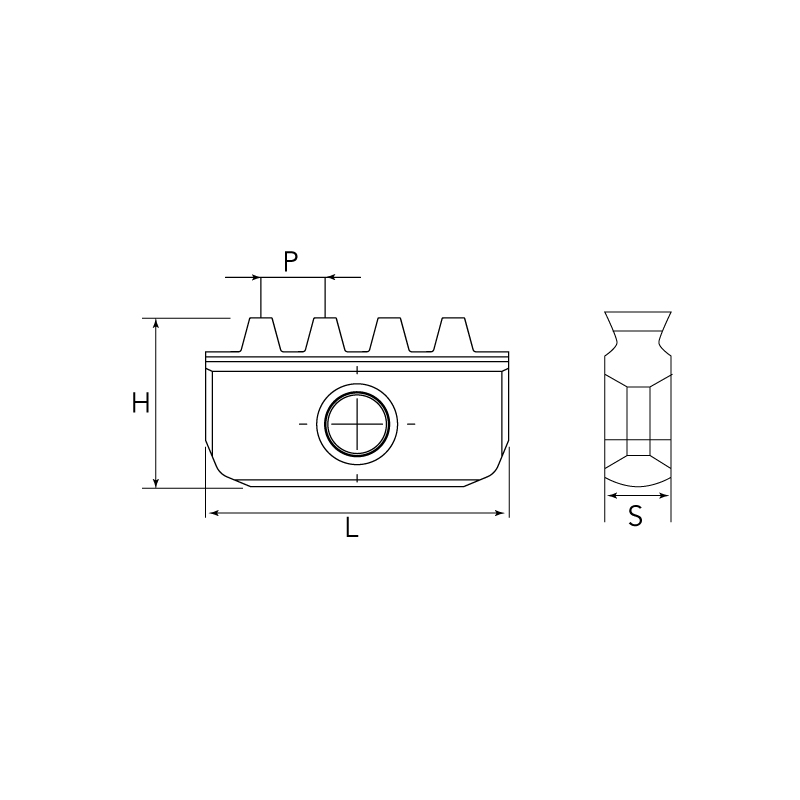

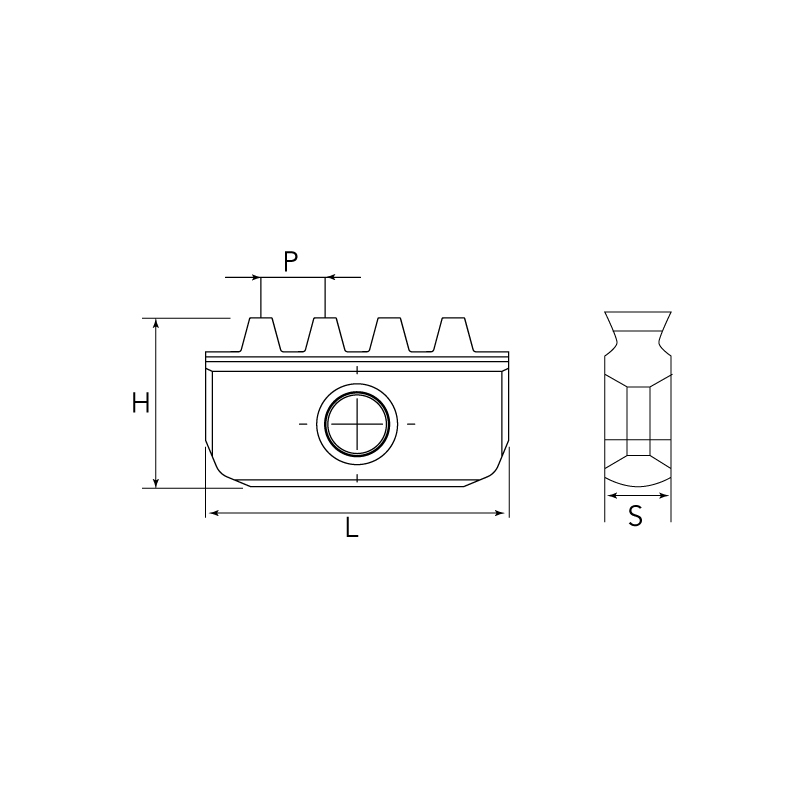

INSERTS
