SHOULDER MILLING TOOLS

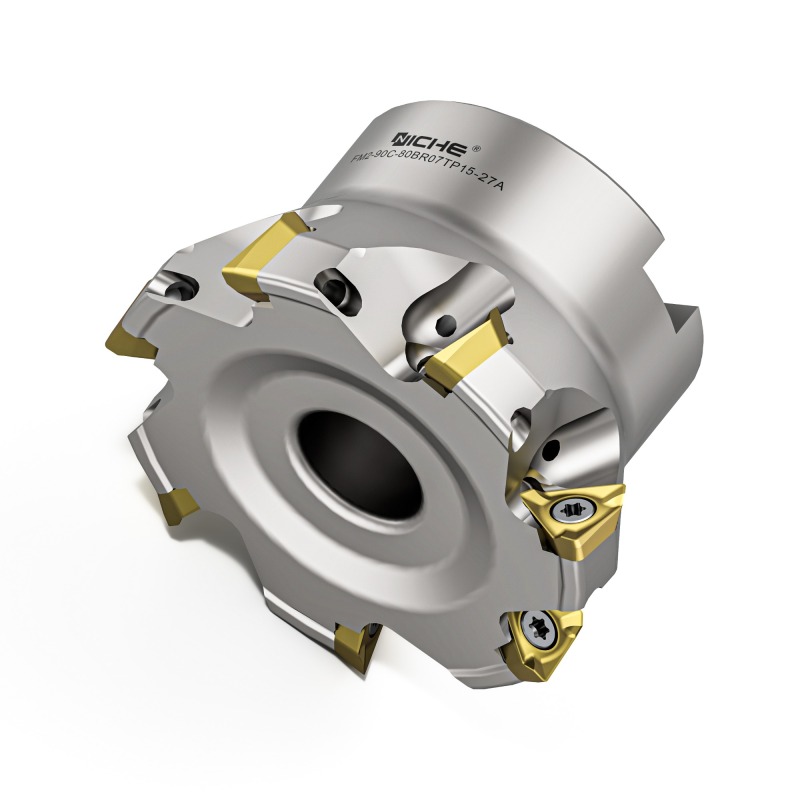

FM2-90C-TP15 (FACE MILL)
Features:
* Diameter Range: Ø50mm-Ø125mm
* Square Shoulder application
* Double sided negative insert with positive cutting
* High material removal rate

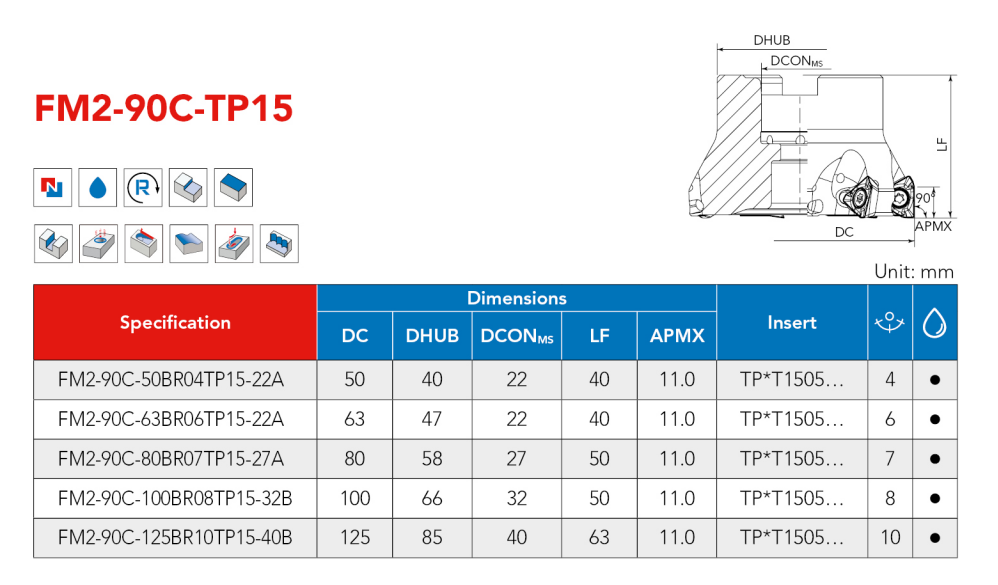

| PRODUCT CODE |
Dimensions (mm) |
INSERTS |
FLUTE NO. |

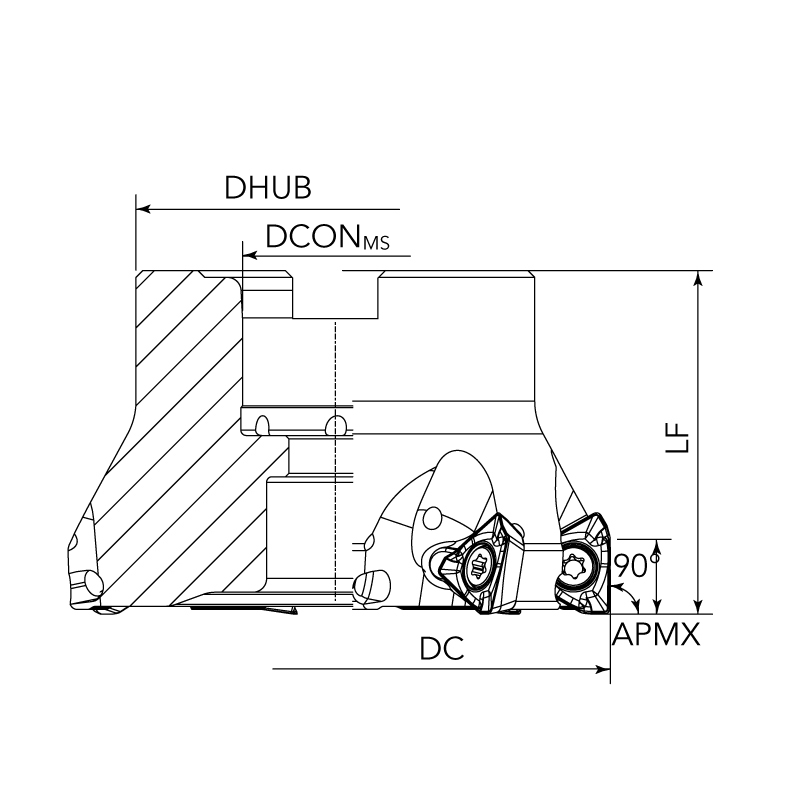

| DC |
DHUB |
DCONMS |
LF |
APMX |
| FM2-90C-50BR04TP15-22A |
50 |
40 |
22 |
40 |
11.0 |
TP*T1505… |
4 |
| FM2-90C-63BR06TP15-22A |
63 |
47 |
22 |
40 |
11.0 |
TP*T1505… |
6 |
| FM2-90C-80BR07TP15-27A |
80 |
58 |
27 |
50 |
11.0 |
TP*T1505… |
7 |
| FM2-90C-100BR08TP15-32B |
100 |
66 |
32 |
50 |
11.0 |
TP*T1505… |
8 |
| FM2-90C-125BR10TP15-40B |
125 |
85 |
40 |
63 |
11.0 |
TP*T1505… |
10 |

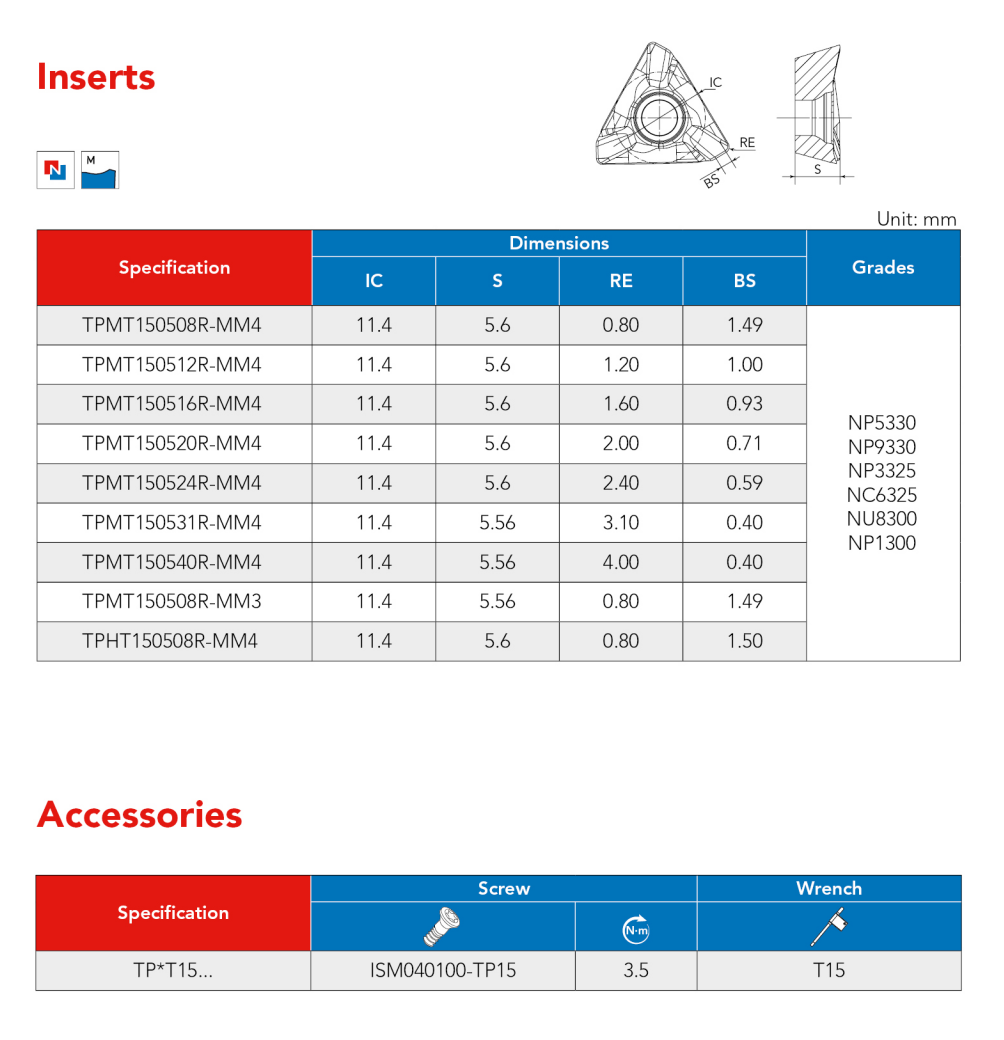

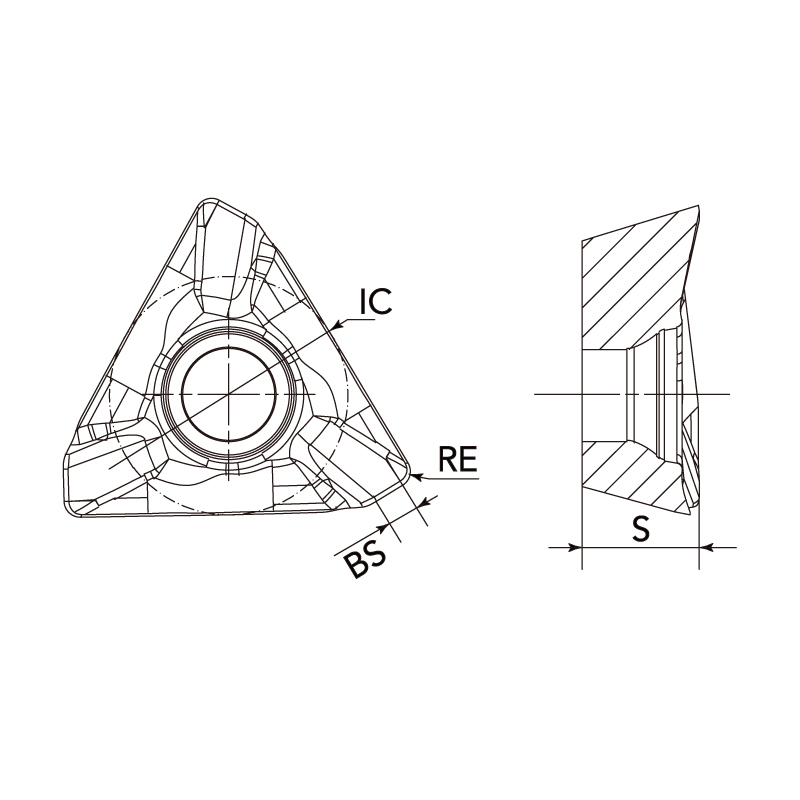

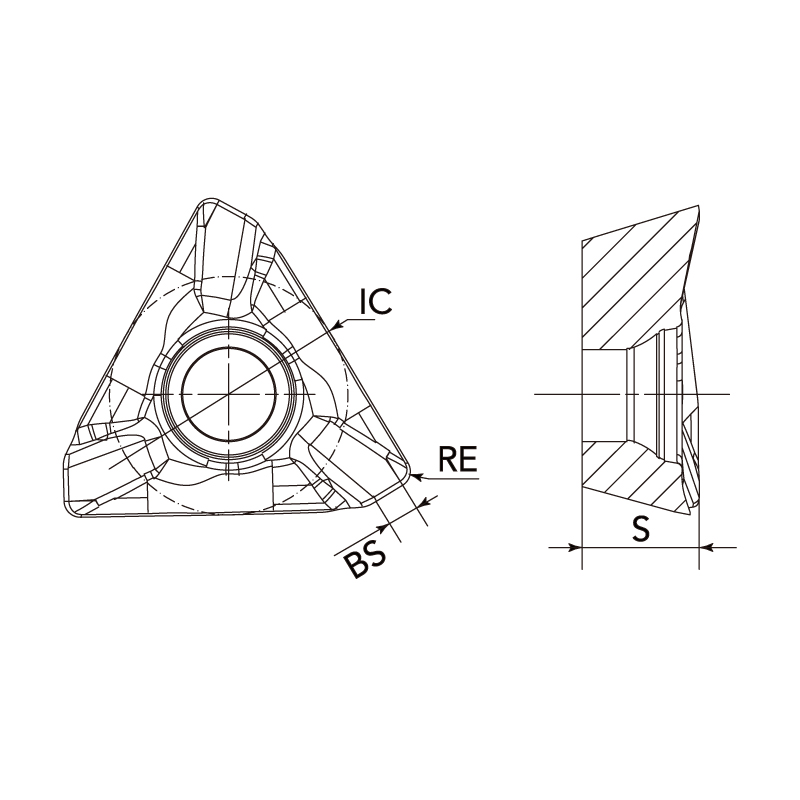

INSERTS
